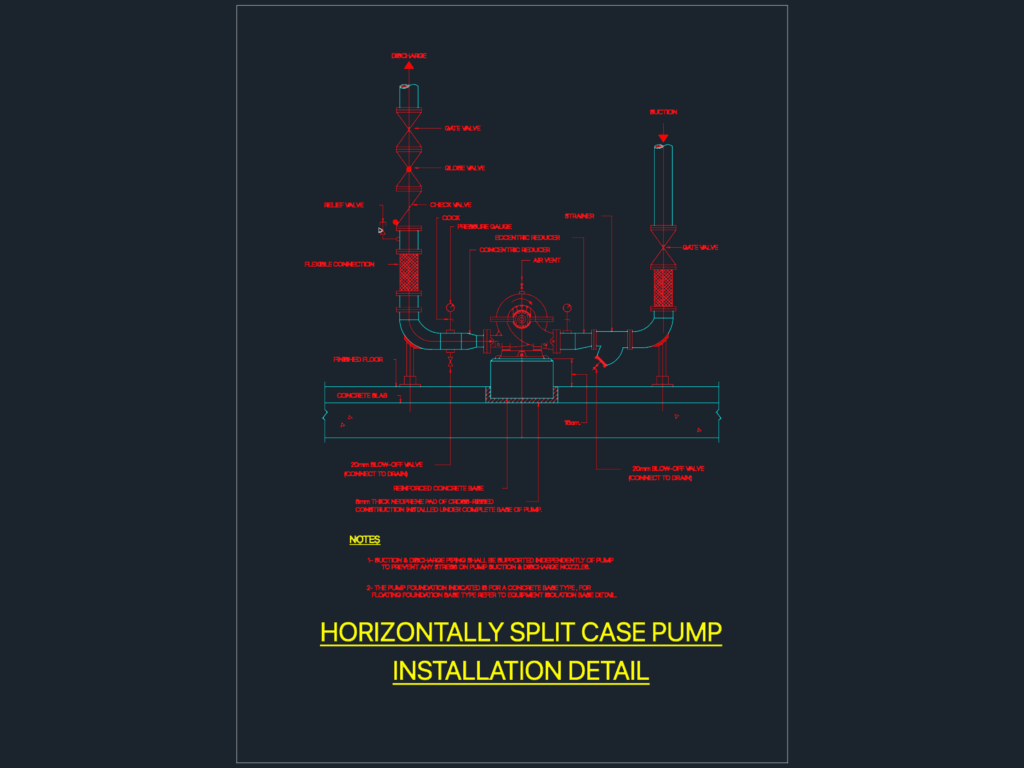

Installation detail for a horizontally split case pump on a reinforced concrete base. Covers all the suction & discharge connections incl. gate valves, strainers, relief valves, & pressure gauges. I’ve noted the 8mm neoprene pad specs & independent pipe support requirements too. Useful AutoCAD template for MEP or plumbing sets.
Horizontal Split Case Pump Installation Detail
