Intermodal Terminal DWG Full Project for AutoCAD

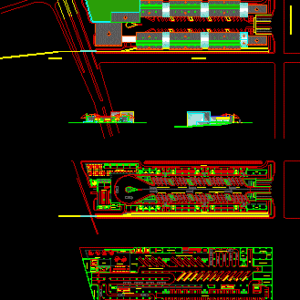

Design Project 13 degree in architecture from the University of Central America. It is an intermodal terminal for buses, trains and taxis. It also has local commerce, offices and financial centers, as well as a supermarket step. A dining area on two levels. At the first level or level 0 0.00, and in the sublevel 0 – 6.80.
Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):
musoc, group gafeso musoc main walkway, temporary parking for buses, workshop, warehouse, cargo center, collective paradise, peripheral buses, encomiendas, administration of the terminal, intertren, taxis, three rivers, vargas araya and branches, east sector bus terminal, three river conception, san diego de tres rios, san ramon of three rivers and branches, lourdes and branches, cypresses, direct paradise, irazu volcano, collective turrialba, direct turrialba, encomiendas winery, living room, drivers, walk, machine room, controls, ssm, ssh, loading and unloading platform of parcels, water tank, waiting room, ticket sales, cafeteria, ss, boarding room, lobby, waiting rooms, kitchen, frozen , administration of the commercial center, bank, local, commercial, fast food area, security, room, monitoring, main control, terminal, mezzanine, supermarket, offices, roundabout source of Hispanidad, second avenue, avenue fourth, sports arena rooslvelt, train line, outlet mall, national bank, longitudinal section, east facade, west facade, peripheral public transport terminal, design: bach. andres varela, ring of circumvallation – gam, autonomous university of central america, design, prof. arq manuel gutiérrez, date :, lamina :, location :, san pedro, montes de oca, canton, district, basement – terminal musoc – peripheral – electric bus – buses cartago, turrialba and paraiso, second level – commercial premises – administration, design: andres varela montenegro, plant of set, location of the project – floor of ceilings, main level – commercial premises – waiting rooms – routes san pedro – tres rios and curridabat
Raw text data extracted from CAD file:
| Language | Spanish |
| Drawing Type | Full Project |
| Category | Transportation & Parking |
| Additional Screenshots |
 |
| File Type | dwg |
| Materials | Other |
| Measurement Units | Metric |
| Footprint Area | |
| Building Features | Garden / Park, Parking |
| Tags | america, architecture, autocad, bus, buses, central, degree, Design, DWG, full, Project, terminal, university |
