Laundry DWG Detail for AutoCAD

Laundry DWG Detail for AutoCAD

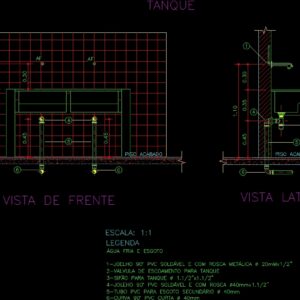

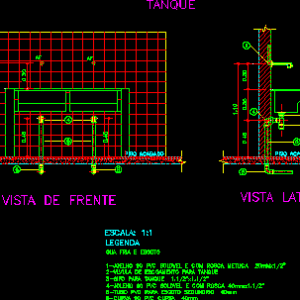

Laundry – Details with technical specifications

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

front view, finished floor, scale:, side view, finished floor, tank, cold sewage pvc weldable with metal thread pouring to tank for pvc tank weldable with pvc thread for secondary sewage pvc short

Raw text data extracted from CAD file:

\A1;0.30 \A1;0.80 \A1;1.10 \A1;0.45 \A1;0.45 \A1;0.30 \A1;0.35 \A1;0.45 \A1;1.10 \A1;0.80 VISTA DE FRENTE 6 5 4 6 PISO ACABADO AF AF ESCALA: 1:1 4 VISTA LATERAL 6 PISO ACABADO 5 3 2 1 TANQUE \C4;LEGENDA \H0.04;\C3;ÁGUA FRIA E ESGOTO 1-JOELHO 90° PVC SOLDÁVEL E COM ROSCA METÁLICA d 20mMx1/2" 2-VÁLVULA DE ESCOAMENTO PARA TANQUE 3-SIFÃO PARA TANQUE d 1.1/2"x1.1/2" 4-JOLEHO 90° PVC SOLDÁVEL E COM ROSCA d40mmx1.1/2" 5-TUBO PVC PARA ESGOTO SECUNDÁRIO d 40mm 6-CURVA 90° PVC CURTA d 40mm 0.30 0.80 1.10 0.45 0.45 0.30 0.35 0.45 1.10 0.80

Language	Portuguese
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	autocad, DETAIL, details, DWG, einrichtungen, facilities, gas, gesundheit, l'approvisionnement en eau, la sant, laundry, le gaz, machine room, maquinas, maschinenrauminstallations, provision, specifications, technical, wasser bestimmung, water
