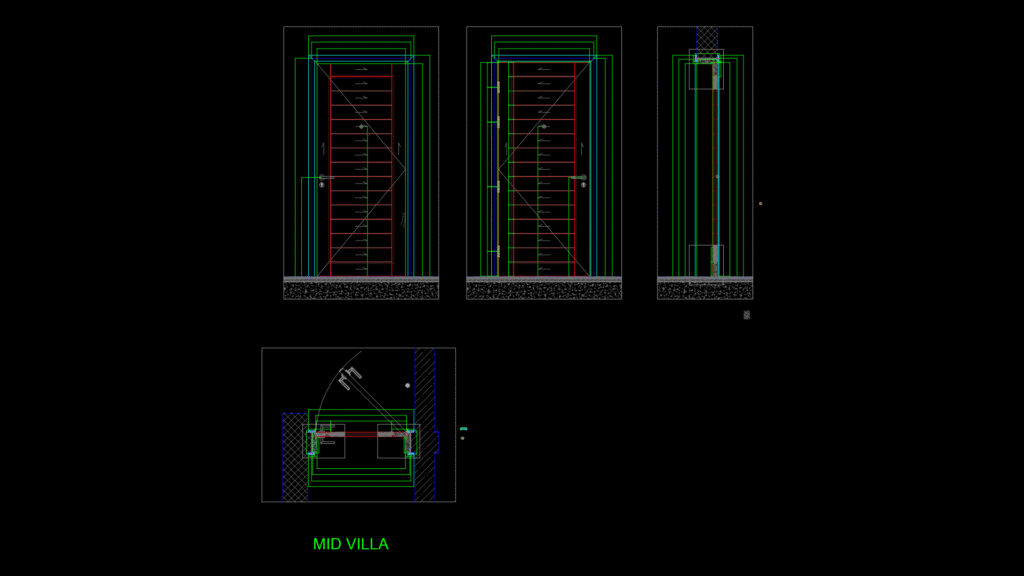

This detailed drawing depicts the main entrance door assembly for 4PLEX mid villa townhouses, showing both right and left configurations. This door features a wood veneer finish with dimensional specifications of approximately 1200mm width and 2600mm height, including the surrounding architrave and frame details. The assembly includes ironmongery components such as hinges and latches, with the frame integrated into stone wall construction. Multiple views are provided: front elevation, rear elevation, sectional view, and top plan view – allowing for comprehensive understanding of the installation requirements. The door is designed with specific tolerances for stone thresholds at the base (0.00+ level) and includes packers for proper installation. This entrance solution balances security requirements with architectural aesthetics appropriate for upscale residential villas. Wall thicknesses appear to be approximately 300mm, suggesting solid masonry or concrete construction typical of UAE residential developments.
Main Entrance Door Detail for Mid Villa Residential Units
