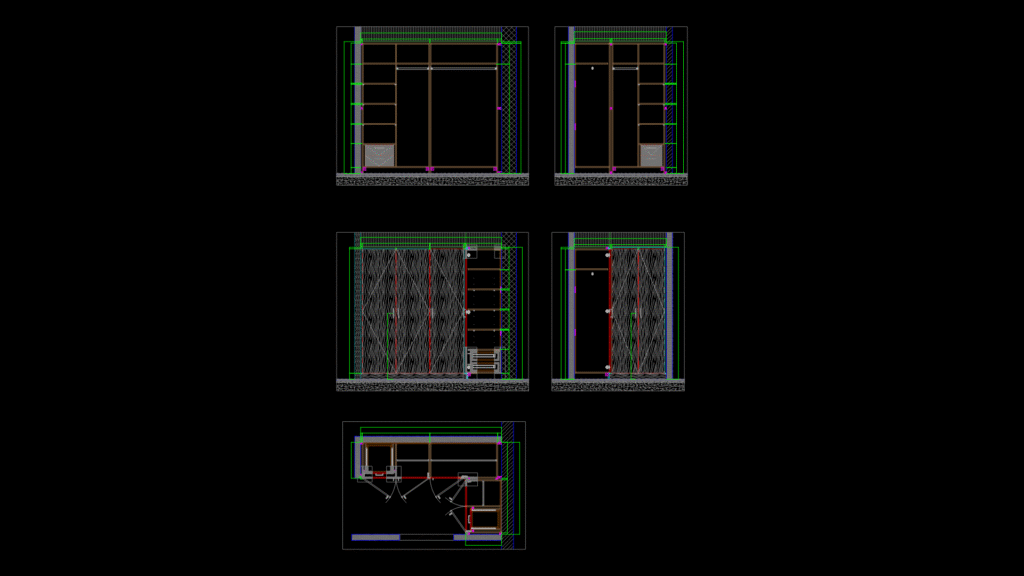

This detail drawing depicts a built-in wardrobe unit for a master bedroom in a mid-villa residential project. This design features multiple elevations and sections showing both the structural framework and finished appearance. The wardrobe includes open shelving compartments, hanging rod sections, and drawer units integrated into the cabinetry system. Construction utilizes wood framing with veneer finish panels, with specific attention to hardware placement including hinges and handles. The unit stands approximately 2.6m tall with varying section depths between 0.6-0.7m. Key joinery details show the backing structure, carcass construction, and architrave treatments around the perimeter. The design incorporates both open-front storage and door-fronted compartments with shelving configurations optimized for clothing storage. Construction requires precise millwork with attention to material transitions and hardware installation points.
Master Bedroom Built-in Wardrobe Section Detail with Veneer Finish
