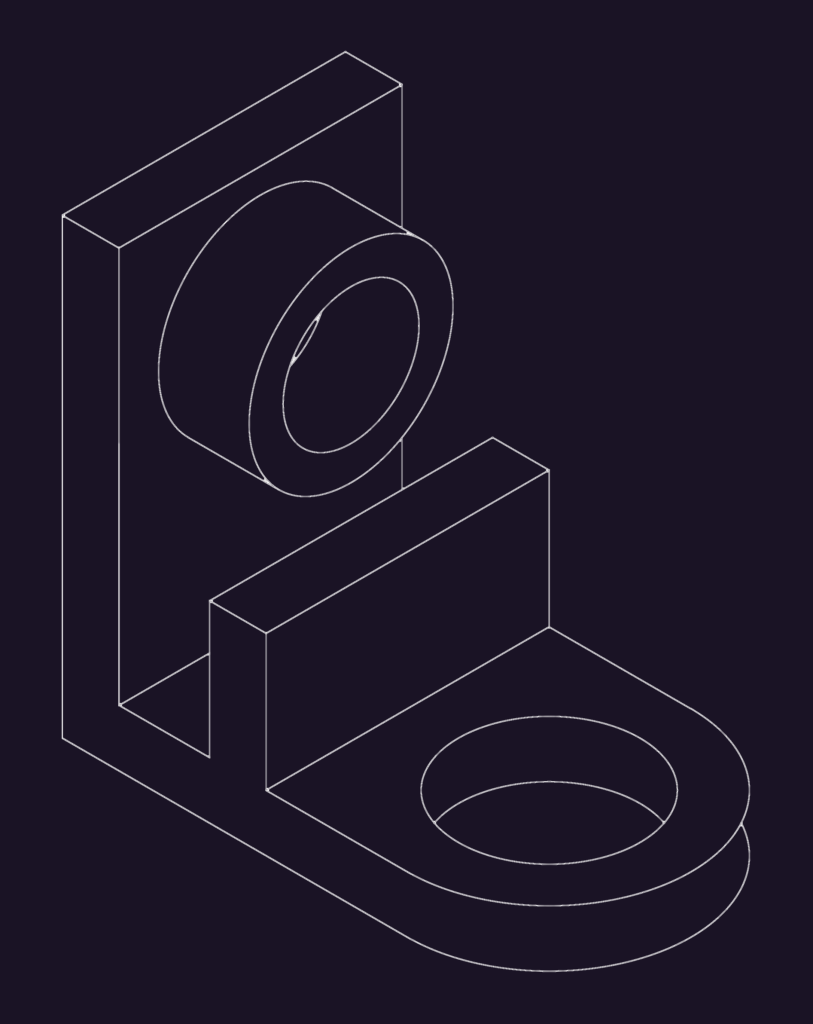

Mechanical mounting bracket in isometric view, drawn for AutoCAD. The part features an L-shape base with two circular ports, one on the vertical upright and another recessed on the horizontal flange. It’s a 2D CAD block using ellipses to represent the holes, standard for isometric projections. Total footprint is about 105mm by 140mm. I’ve used this for simple assembly diagrams in industrial projects. Clean lines, no mess. Materials would usually be cast aluminum or steel. Works well if you need a quick placeholder for hardware mounts.
Mechanical Mounting Bracket Isometric CAD Block
