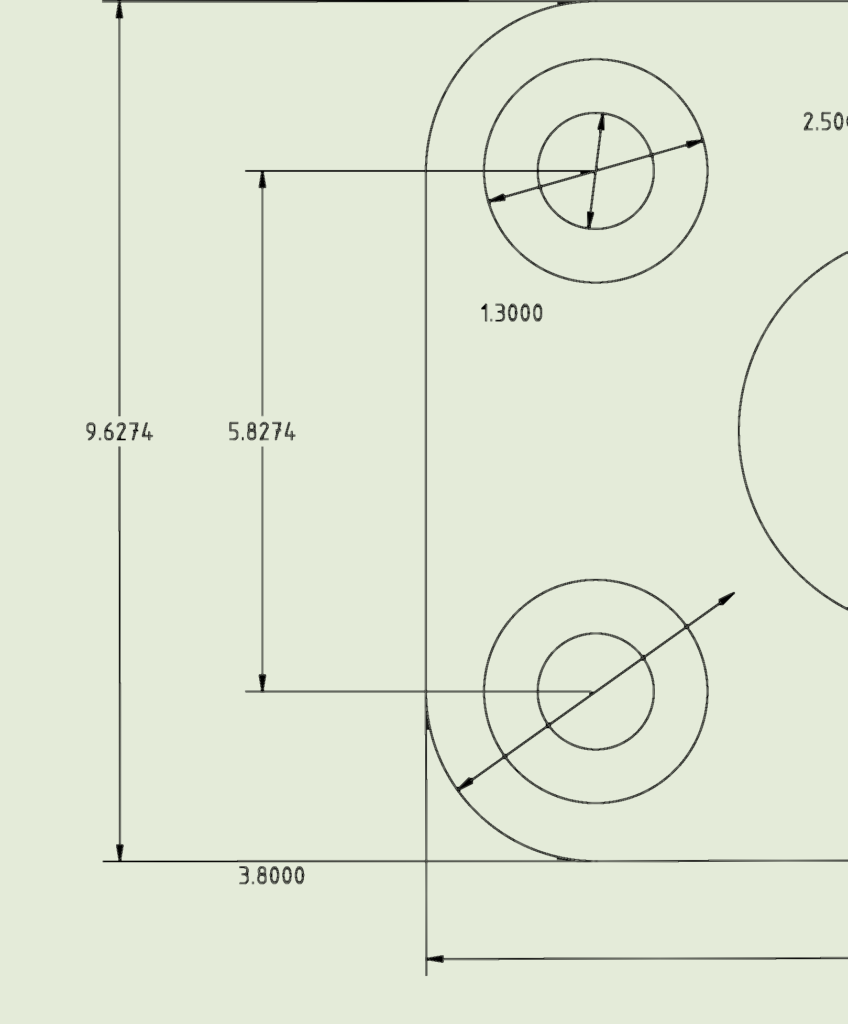

Mechanical plate detail featuring various circular bored holes & rounded corners. I’ve included several dimensions like the 5.8274″ vertical spacing & the 3.8″ offset. Standard mounting flange or spacer for mechanical assemblies. The layout uses imperial units (inches). Views show hole diameters like 1.3000″ & 2.5000″, plus some concentric circles which might be for counterbores.Includes arcs for the fillets & specific center-to-center distances etc.
Mechanical Mounting Plate Detail
