Technical Drawing Overview

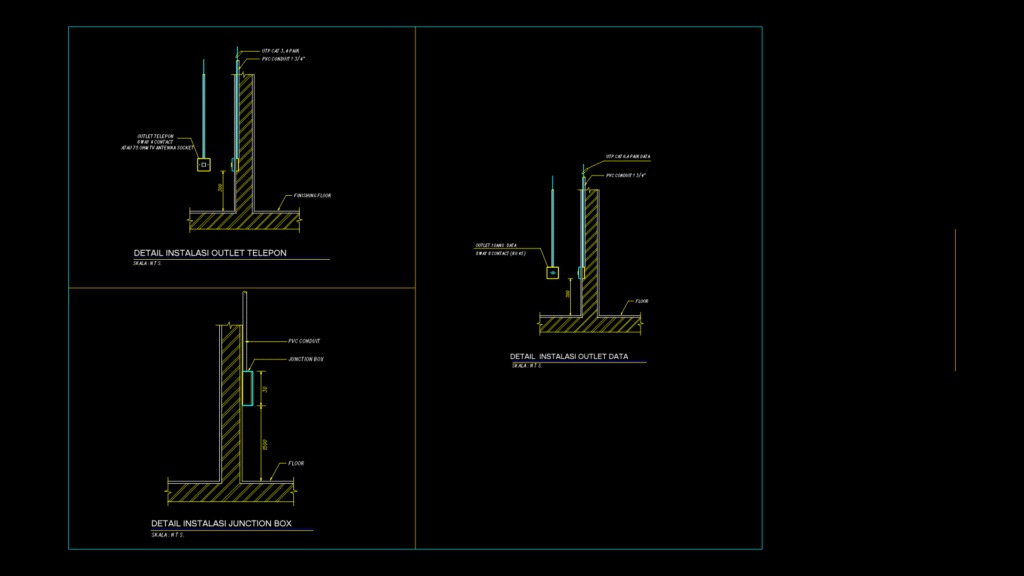

This drawing provides detailed installation cross-sections for low-voltage communications systems in a hospital facility. The sheet contains three critical installation details:
1. Telephone Outlet Installation (Top Left)
– UTP CAT 3, 4-pair cabling within ¾” PVC conduit
– Outlet features 6-way 4-contact configuration or 75 ohm TV antenna socket option
– 300mm height measurement from finishing floor
– Wall-embedded conduit routing
2. Data Outlet Installation (Top Right)
– UTP CAT 6, 4-pair data cabling within ¾” PVC conduit
– 8-way 8-contact (RG45) outlet for single-gang data connection
– 300mm standard mounting height from floor
– Similar wall-embedded conduit approach as telephone installation
3. Junction Box Installation (Bottom Left)
– Standard junction box with PVC conduit connection
– 1500mm installation height from floor level
– Recessed box design with wall access
All details are shown at NTS (Not To Scale) and employ standard cross-sectional hatching to indicate wall construction. The drawing follows Indonesian engineering standards, belonging to the Hermina Hospital Karawang MEP documentation set (drawing EC-301). The installation details conform to typical healthcare facility low-voltage communications specifications.
