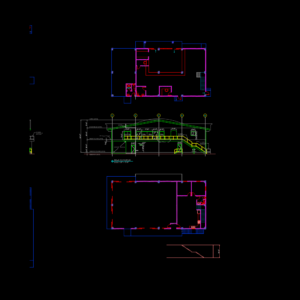

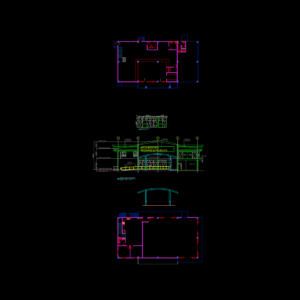

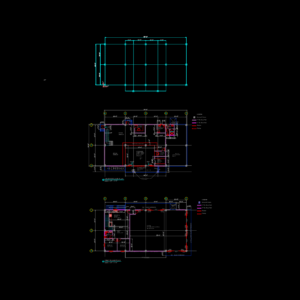

Full set of drawings for a mixed-use commercial building, originally designed for a hardware supply store. Includes ground and first floor plans showing the retail display area, customer lobby, loading bay, and a manager’s office. Upstairs has a massive open storage area alongside a private living space with kitchen, dining, and bedroom. I’ve included all exterior elevations—North, South, East, West—plus a zoomed-in shop front elevation at 3/8″ scale. Dimensions are all imperial, featuring 14″ steel columns and various block wall thicknesses. Also has specs for a curved entry canopy and accessible ramp. etc.
Mixed Use Commercial and Residential Building Plan with Elevations
