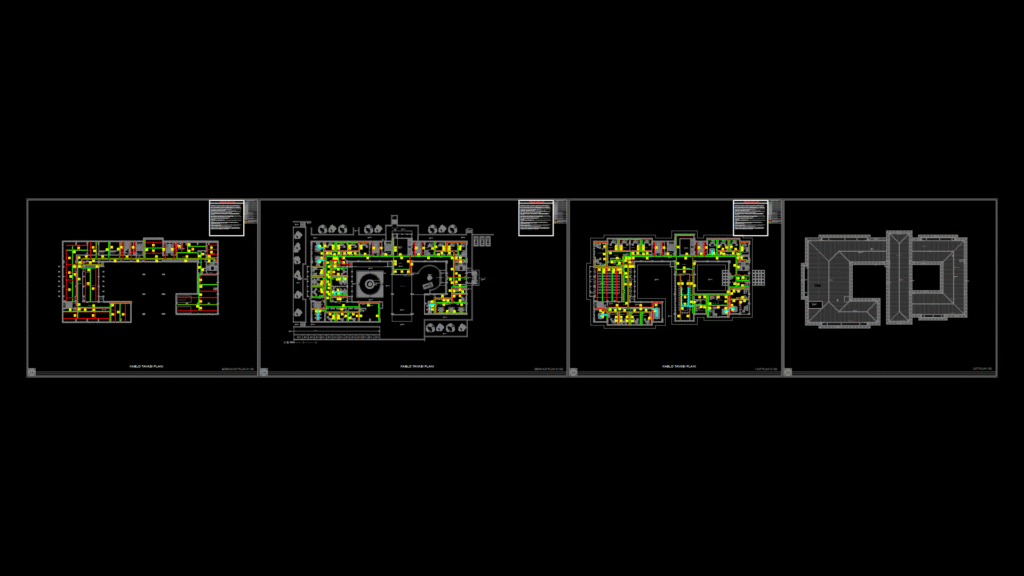

Comprehensive cable management system layout for a university administration building showing the routing of electrical cable trays across multiple floors. This plan includes separate pathways for power (kuvvetli akım) and data/control (zayıf akım) systems, with hot-dip galvanized cable trays in various widths (100-600mm). Key features include:
System Components:
– Hot-dip galvanized cable trays with minimum 1.5mm thickness and 55μm galvanization
– T-junctions, 4-way connectors, and horizontal turn elements for cable routing
– Floor channels for under-screed cable distribution
– Covered cable channels in specific areas
Technical Requirements:
– Cable trays require 6mm² grounding connections at both ends and at junctions
– Maximum console spacing of 150cm with minimum 4-point ceiling anchoring
– Power and data cables must be separated in different trays or with separators
– Specific 1% slope requirements in multiple sections
The design complies with TSE 9111 standards and includes detailed project notes governing installation specifications.
