Comprehensive security and emergency communication system plan for a five-level institutional building (SAMÜ Building No.1) spanning basement through roof levels. This design features integrated CCTV surveillance with 30+ strategically positioned cameras (including interior dome, hemispheric, and exterior bullet cameras) connected via CAT6 UTP HF cabling to a centralized 42U rack cabinet.
Key System Components:
- CCTV System: 32-channel NVR, 48-port PoE switch, 22″ monitoring displays and a 40″ LED LCD monitor for the monitoring center
- Emergency Announcement System: Zone-based configuration with 5 distinct zones using timed-rated LIH(st)H FE 180 3×1.5mm² cabling, ceiling-mounted 6W speakers with line transformers, 300W amplifier, and UHF handheld wireless microphone
- Integration Features: Fire alarm system integration for emergency announcements, UPS power backup for all active components, and combined infrastructure sharing with data systems

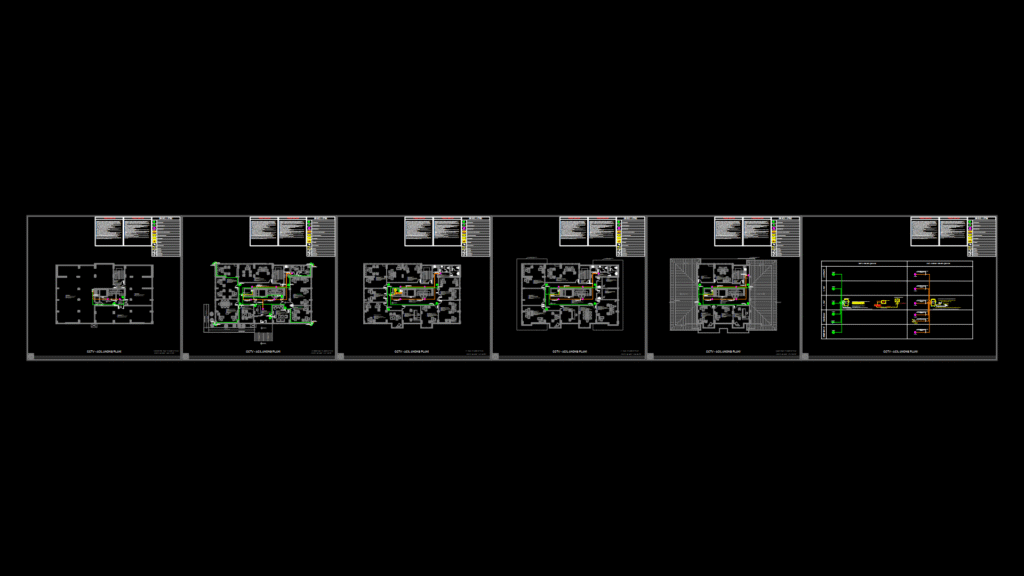

The drawing includes detailed floor plans showing device locations, cabling routes, and riser diagrams illustrating the hierarchical structure of both systems. Equipment specifications and installation notes are provided to ensure proper implementation according to safety standards.
