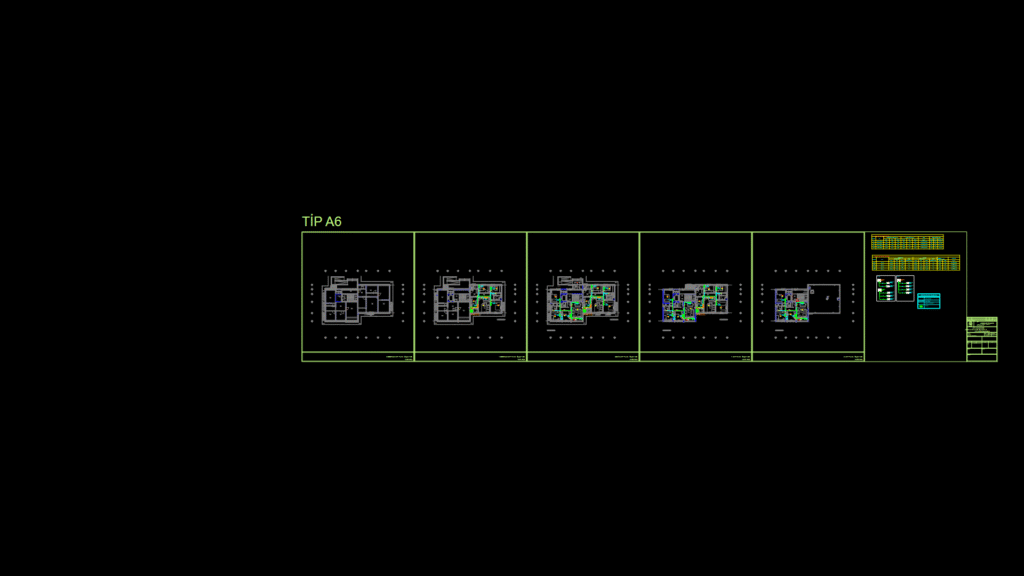

Complete mechanical air conditioning system layout for Type A6 residential block in the Hidirbey Mahallesi housing project. The drawing shows floor-by-floor HVAC plans at 1:50 scale from 2nd basement to 2nd floor, including elevations at -5.82m, -2.91m, ±0.00m, +2.91m, and +5.82m.
Key System Components:
– Wall-mounted split type air conditioners with capacities ranging from 7,000-18,000 BTU (2.0-5.28 kW cooling)
– Multi-F outdoor units with capacities ranging from 24,000-42,000 BTU (7.0-12.3 kW)
– Refrigerant piping systems with 1/4″ liquid lines and 3/8″-1/2″ gas lines
– Condensate drain piping with 25/16.0 mm diameter
– Outdoor units stacked on balcony walls
The plan includes detailed specifications for indoor and outdoor units (D-1 through D-4 and DU-1 through DU-4), electrical requirements (220-240V/50-60Hz), and cooling capacities in BTU, kW and kcal. Drainage systems are integrated into the plan with strategically positioned condensate lines connecting to building drainage.
