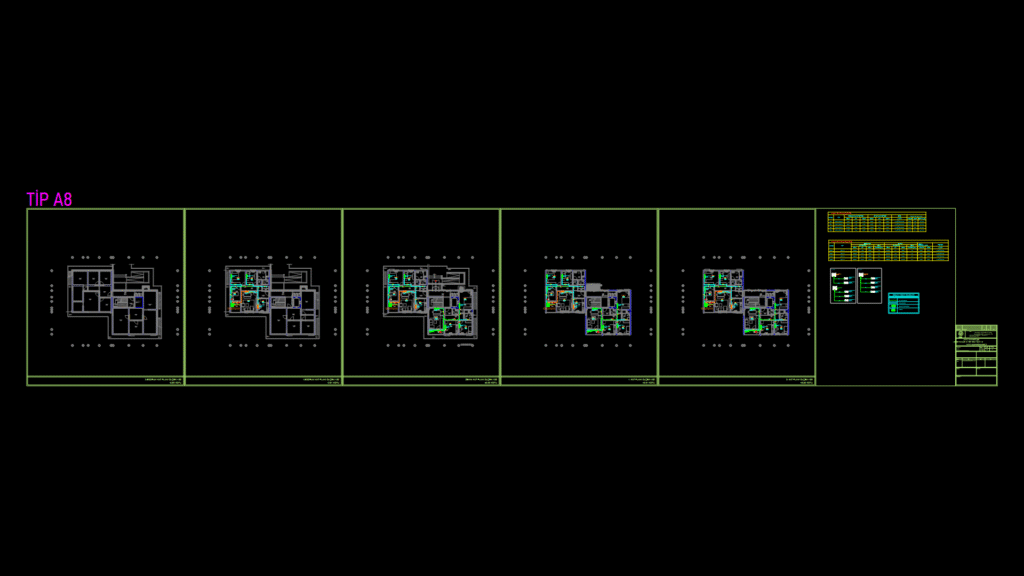

A comprehensive air conditioning installation plan for a multi-story Type A8 residential building in Hidirbey, Samandağ, Hatay. This drawing depicts floor-by-floor HVAC layouts showing split-system air conditioner placements with interior wall units and exterior condenser units mounted on balcony walls.
Technical Specifications:
– Four different indoor unit models (D-1 through D-4) with cooling capacities ranging from 7000 BTU (2.0 kW) to 18000 BTU (5.28 kW)
– Four outdoor multi-split condenser units (DU-1 through DU-4) with capacities from 24000 BTU (7.0 kW) to 42000 BTU (12.3 kW)
– Refrigerant line sizing: 1/4″ liquid lines and 3/8″ or 1/2″ gas lines depending on capacity
– Condensate drain lines routed to appropriate drainage points
– Units operate on 220-240V/50-60Hz single-phase power supply
The plans cover multiple levels at elevations -5.82m, -2.91m, ±0.00m, +2.91m, and +5.82m, and include detailed equipment schedules with BTU ratings, power consumption figures, and refrigerant pipe specifications. Drawings are prepared at 1:50 scale with both standard floor plans and mechanical overlay drawings.
