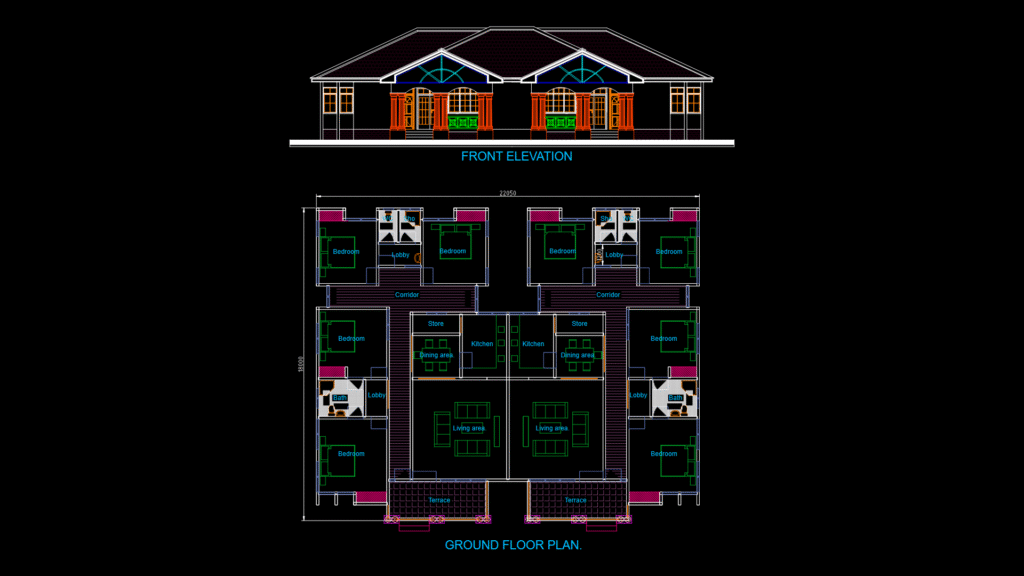

Architectural drawing for a single-story quadruplex residential building featuring four identical flat units in a symmetrical arrangement. The ground floor plan (22050mm × 18000mm) includes:
Each Unit Contains:
– Living area with furniture layout
– Dining area connected to kitchen
– 2 Bedrooms per unit (8 total)
– Bathroom with fixtures
– Storage space
– Private terrace
Common Features:
– Central corridor providing access to all units
– Lobbies serving as entry points
– Symmetrical mirrored design with two units on each side
The front elevation shows a single-story structure with pitched roof design featuring decorative gable elements, large windows, and prominent entryways with steps. The overall design emphasizes efficient space utilization within a compact footprint while maintaining privacy between units.
