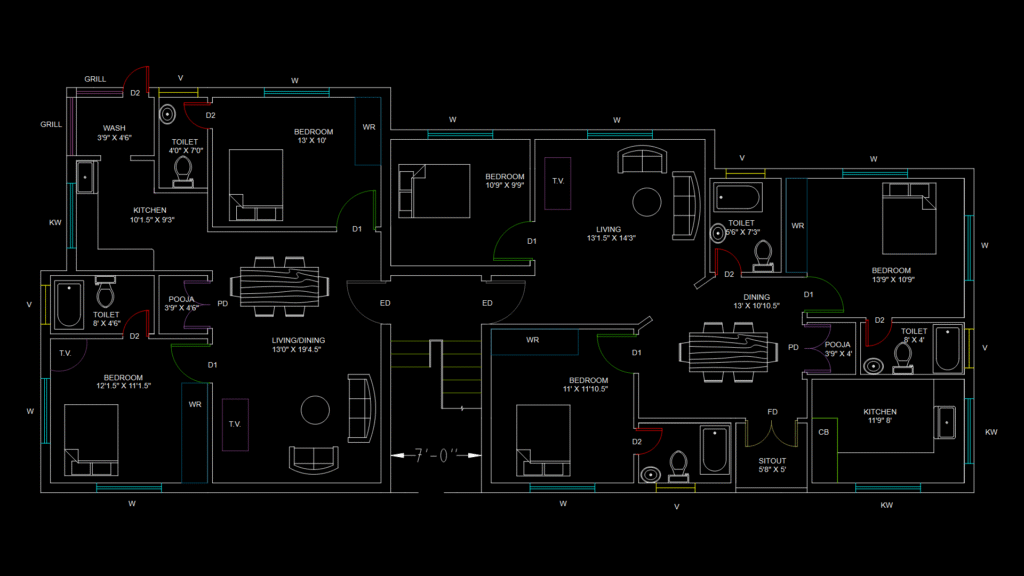

This detailed floor plan depicts a two-unit residential layout with distinct cultural considerations. Each unit features 3 bedrooms with integrated wardrobes (WR), multiple bathrooms with standard fixtures, and dedicated pooja rooms (3’9″ x 4’6″ and 3’9″ x 4′) for spiritual practices. The left unit includes a combined living/dining area (13’0″ x 19’4.5″) while the right unit separates these functions (living 13’1.5″ x 14’3″, dining 13′ x 10’10.5″). Both units contain well-proportioned kitchens (10’1.5″ x 9’3″ and 11’9″ x 8′) with window ventilation. The layout maximizes cross-ventilation with strategically placed windows (W) and ventilators (V), while incorporating furniture blocks for beds, sofas, dining tables, and bath fixtures. The units are separated by a 7′ corridor, suggesting an apartment configuration with shared access. Notable features include multiple TV placement locations and cabinet blocks (CB) for storage optimization.
Multi-Unit Residential Floor Plan with Pooja Rooms and Wardrobe Spaces
