Comprehensive Residential Development Plan for Bangalore

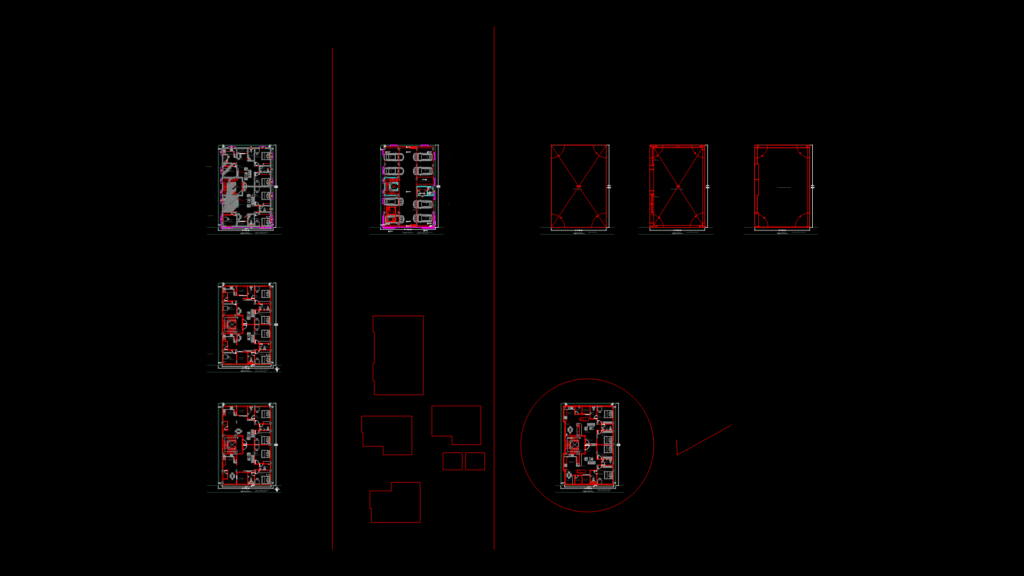

This drawing depicts a detialed architectural floor plan for a north-facing residential duplex development in HSR Layout, Bangalore. The project features two distinct residential blocks (Block A and Block B) with a shared central circulation core containing a staircase and elevator.
Site Specifications:
– Total site area: 2400 sq.ft (approximately 60′ × 40′)
– Ground floor built-up area: 2032 sq.ft
– First floor built-up area: 2075 sq.ft
– Parking area: 2015 sq.ft
Unit Details:
– Block A: 964.42 sq.ft (first floor measurement)
– Block B: 927.75 sq.ft (first floor measurement)
– Common area: 175 sq.ft
Each residential unit includes essential spaces: master bedroom (11’6″ × 13’6″), secondary bedroom (11’4″ × 10’0″), kitchen (varying sizes from 7’5″ × 9’10” to 10’0″ × 11’8″), utility areas, toilets, dining space, foyer, and living areas. Additional features include balconies (typical size 7’8″ × 3’2″), study rooms, and pooja (prayer) areas.
The design incorporates practical infrastructure elements including a lift (5’0″ × 4’6″), meter panel, sump (6’0″ × 10’4″), and staircase with landing (15’0″ × 12’6″). Floor levels are carefully graded, with typical finished floor level at +1’6″ relative to road level. The plan effectively addresses corner-plot challenges by orienting the development toward the 60′ wide, overall, road while providing secondary access from the 22′ wide road. This arrangement optimizes natural light penetration while maintaining privacy between units.
