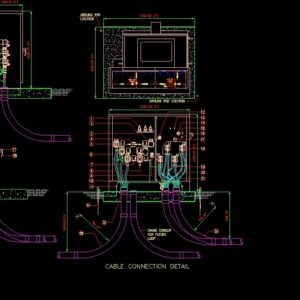

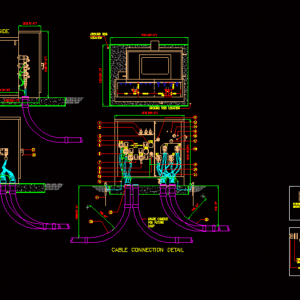

Pad Mounted Transformer DWG Block for AutoCAD

Loop Feed

Drawing labels, details, and other text information extracted from the CAD file:

b only, a only, feed thru, bushing insert, hot stick tool, insulated cap, description, no., bayonet fuse holder, clip on drip shield, load break parking stand, load break switch, load break elbow connector, lighting arrester elbow type, np on door, serial on tank, pressure vac. gauge, pressure relief valve, oil level plug, handhole and security cover, lifting lugs, tank, cooling radiators, padlockable door handle, tap changer handle, end bell, ground rod location, spare conduit for future loop, bolt, flat washer, transformer terminal spade, spring washer, knot, crimping type lugs, ground rod location

Raw text data extracted from CAD file:

H1A H2A H3A H1B H2B H3B X0 X1 X2 X3 B ONLY A ONLY A & B FEED THRU BUSHING INSERT \W2.56271; LOAD BREAK \W2.56271; ELBOW CONNECTOR HOT STICK TOOL INSULATED CAP \W0.69840; \W1.25000x;PRIMARY CONNECTION DETAIL DESCRIPTION NO. 1 BAYONET FUSE HOLDER 2 CLIP ON DRIP SHIELD 3 LOAD BREAK PARKING STAND 4 LOAD BREAK SWITCH 5 LOAD BREAK ELBOW CONNECTOR 6 #4AWG GROUNDING WIRE 7 LOAD BREAK PARKING STAND 8 LIGHTING ARRESTER ELBOW TYPE 9 3C-1/0 MEDIUM VOLTAGE CABLE 10 1/2-13 GROUND PAD 11 2″ MAG LLG 12 NP ON DOOR, SERIAL ON TANK 13 PRESSURE VAC. GAUGE 14 PRESSURE RELIEF VALVE 15 OIL LEVEL PLUG 16 DIAL THERM W/MAX POINTER 17 LV BUSHING & 4 HOLE SPADE 18 1/2-13 GROUND PAD 19 1 DRAIN VALVE AND SAMPLER 20 4C-500MCM LV CABLE 21 HANDHOLE AND SECURITY COVER 22 LIFTING LUGS 23 TANK 24 COOLING RADIATORS 25 LIFTING LUGS 26 3 PT LATCH PENTA SEC BOLT 27 PADLOCKABLE DOOR HANDLE 28 5″ PVC CONDUIT PIPE SCH.80 29 4″ PVC CONDUIT PIPE SCH.40 TAP CHANGER HANDLE 30 3/4″x10′ GROUND ROD & CLAMP 31 END BELL 32 \A1;6250 [20′-6″] \A1;6000 [19′-8″] \A1;6000 [19′-8″] \A1;2020 [6′-8″] \A1;2830 [9′-3″] \A1;5150 [16′-11″] \A1;4955 [16′-3″] \A1;5530 [18′-2″] 125 125 125 100 100 300 \A1;MIN. 60″ 125 375 100 100 1412 250 653 653 1065 200 653,45 1636,09 1086,91 653,45 \A1;7050 [23′-2″] \A1;MIN. 18″ \A1;MINIMUM 24″ \A1;MIN. 60″ \W9.30342; \W1.25000x;PRIMARY SIDE \W6.87485; \W1.25000x;SECONDARY SIDE \W5.60672; \W1.25000x;CABLE CONNECTION DETAIL 5 5 5 5 5 5 5 1 2 3 4 5 7 9 6 12 15 17 14 13 19 18 26 23 22 27 28 20 8 16 30 29 24 11 10 21 25 32 5 GROUND ROD LOCATION 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 SPARE CONDUIT FOR FUTURE LOOP \W0.74706; \W1.25000x;SECONDARY CONNECTION DETAIL BOLT FLAT WASHER TRANSFORMER TERMINAL SPADE SPRING WASHER KNOT CRIMPING TYPE LUGS 5 GROUND ROD LOCATION MIN. 18″ MINIMUM 24″ MIN. 60″ 31 MIN. 60″
