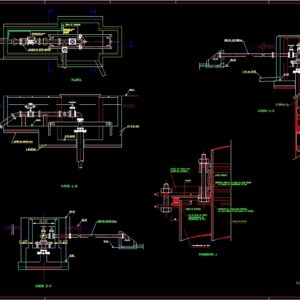

Perforation For Water Capture – Detail Submergible And Lining DWG Detail for AutoCAD

Perforation For Water Capture – Detail Submergible And Lining DWG Detail for AutoCAD

Constructive details

Drawing labels, details, and other text information extracted from the CAD file (Translated from Portuguese):

Dn steel pipe, court, cleaning concrete, court, Of q. Electric, plant, Transition box, Single concrete blocks, Hole finish, detail, equipment, Capturing hole, F.g., court, Rubber washer, Washer support ring, Hole finish, Reinforcement of the, Fixing the screws, Cap, Af., To the hole finish cap, Total welding of a gibault joint collar, Screw head welding, Pump column, Cap gibault face inside cap, Gibault board, steel tube, Built-in check valve, Level indicator pressure gauge, Pump drain, Probes cables, Motor power cables, Minimum level probe

Raw text data extracted from CAD file:

\A1;0.18 \A1;0.02 \A1;0.02 TUBO DE AÇO DN 80mm 5 CORTE E-F 5 51.59 52.21 BETÃO DE LIMPEZA B15 # í8 af.0.10 49.00 CORTE A-B 0.1798845498125161 53.00 53.34 # í8 af.0.10 49.14 53.00 DO Q. ELÉCTRICO A F PLANTA C 2VAV3X6+T6(F. Motriz) VAV4X1.5(Sondas) Caixa de Transição MACIÇOS DE BETÃO SIMPLES VAV3X2.5+T2.5(F. Motriz) VAV10X1.5(Comando) VAV2x2.5+T NYCY2X1.0 E D Revestimento do Furo PORMENOR A EQUIPAMENTO FURO DE CAPTAÇÃO d 125mm f.g. CORTE C-D Anilha de Borracha Aro de Apoio da Anilha Vedante,Soldado ao Revestimento do Furo Reforço do tampão para 10 10 8 35 fixação dos parafusos 10 tampão 8 # í 8 af. 0.10 ao tampão do revestimento do furo Soldadura total de um colar da junta gibault Soldadura da Cabeça dos Parafusos Coluna da Bomba da Junta Gibault à Face Interior do Tampão JUNTA GIBAULT 53.6 B 52.26 í 140 mm (PVC) TUBO DE AÇO DN80mm Válvula de Retenção Incorporada Sonda de pressão do Indicador de Nível Ralo da Bomba Cabos das Sondas 2FBBN 3x1,5mm2 Cabos de alimentação do Motor 2FBBN 3x6+Tmm2 Sonda de nivel minimo 51.59 53.00 53.34

Language	Portuguese
Drawing Type	Detail
Category	Water Sewage & Electricity Infrastructure
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, capture, constructive, DETAIL, details, distribution, DWG, fornecimento de água, kläranlage, l'approvisionnement en eau, lining, supply, treatment plant, wasserversorgung, water
