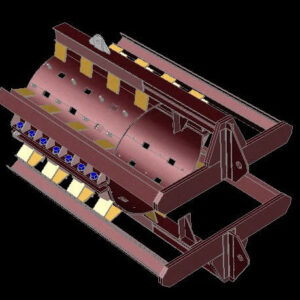

Pipe Pull Head DWG Block for AutoCAD

Pipe Pull Head DWG Block for AutoCAD

FOR PULL THE PIPE TO THE OFFSHORE

Drawing labels, details, and other text information extracted from the CAD file:

note:-, stud, sq. hole, item, no., material, description, quantity, std, nut, stud

Raw text data extracted from CAD file:

\A1;1125mm \A1;1500mm \A1;1000mm 2) DO NOT SCALE THE DRAWING. 1) ALL DIMENSIONS ARE IN MILLIMETERS. NOTE:- PARTS & MATERIAL LIST 10 3 1 4 5 2 13 12 11 17 16 STUD SQ. HOLE 20 18 6 14 19 Item No. Material Description Quantity 1 ST - 37 Plate 30mm thk. 1.760m long 2 2 ST - 37 Plate 16mm thk. 2 3 ST - 37 Plate 30mm thk. 2 4 ST - 37 Plate 20mm thk. 2 5 ST - 37 Angle 75x75x6 0.57m long 4 6 ST - 37 Plate 12mm thk. 48 7 ST - 37 ISHB 150 2.5M long 6 8 ST - 37 Plate 12mm thk. 1 9 ST - 37 Plate 12mm thk. 2 10 ST - 37 Plate 12mm thk. 1.4m long 2 11 ST - 37 Plate 12mm thk. 2 12 ST - 37 Plate 12mm thk. 2 13 ST - 37 Plate 12mm thk. 2 14 ST - 37 Plate 20mm thk. 1.5m long 4 16 ST - 37 Plate 12mm thk. 4 17 STD Ex Head bolt M 36 22 18 Nut 19 Stud 20 ST - 37 Plate 12mm thk. 32 STD STD 9 8 1125mm 1500mm 1000mm 7 32 32

Language	English
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials	Other
Measurement Units	Metric
Footprint Area
Building Features
Tags	autocad, block, DWG, le tuyau, parafusos, pipe, robinet, rohr, schraub, screw, tubos, valve, válvulas, ventil, vis
