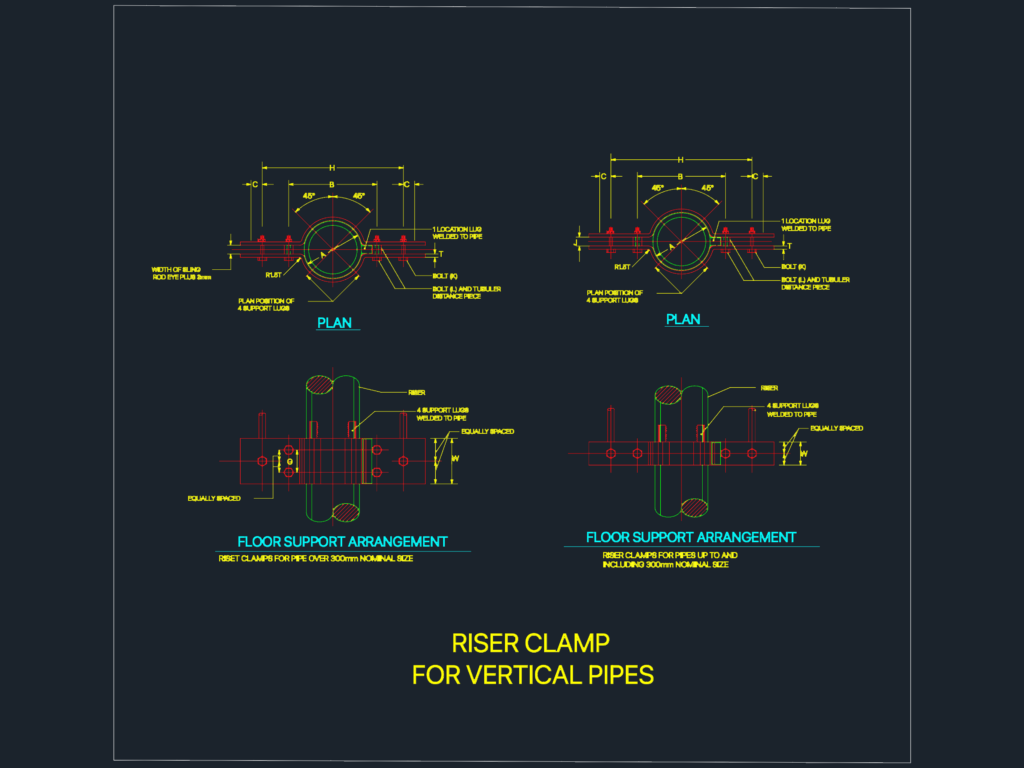

Pipe Riser Clamp Floor Support DWG Details
Riser clamp floor support details for vertical pipes, incl. arrangements for sizes over and under 300mm nominal. This DWG shows plans, support lugs and bolt positions for mechanical or plumbing installs.
