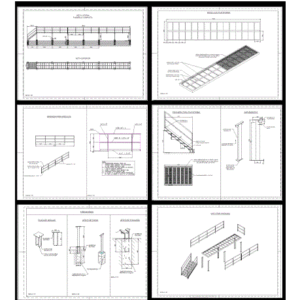

Platform Truck Desencarpado DWG Block for AutoCAD

Platform for inspection and desencarpado of soybean truck before entering the discharge cilo.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Rev, description, date, elaborated, revised, Approved, Foundations, scale:, Anchor plate, Leg support, Ladder support, scale:, scale:, Railing for modules, scale:, Note: construction all joints will be welded with electrodes of the minimum thickness join. Paint: paint with two hands of antioxide two of synthetic enamel. Pipes angles yellow yellow footpegs the height of the rail must be respected in mm above the level of the platform, scale:, Exploded view, Ladder for platform, Supplements, scale:, Side view complete walkway, top view, In doubt consult the technical office, scale:, Platform module, spout, spout, top, Poles, Exploded view, scale:, scale:

Raw text data extracted from CAD file:

Language Spanish
Drawing Type Block
Category
Additional Screenshots
File Type dwg
Materials
Measurement Units
Footprint Area
Building Features Car Parking Lot
Tags , , , , , ,
