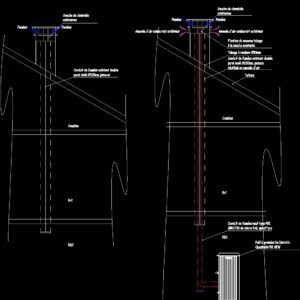

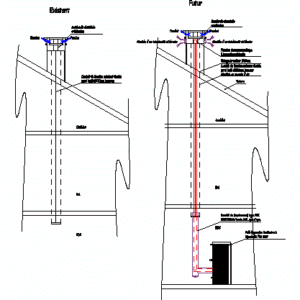

Vue en coupe du poele a granule et sa cheminee
Drawing labels, details, and other text information extracted from the CAD file (Translated from French):
wood, flue duct existing double wall isolated insulation, existing chimney stub, fumes, loft, ground floor, existing, flue pipe existing double wall insulated re-used junc in air supply, existing chimney stub, fumes, loft, ground floor, future, supply of external combustion air, casing realize, new flue pipe type pgi of specific shade ral, pellets of dietrich quadralis pbi, fixation of the new casing the existing strain, roofing
