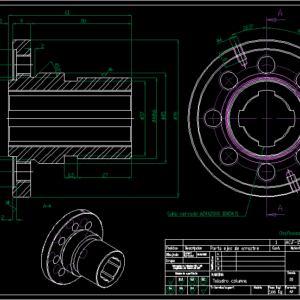

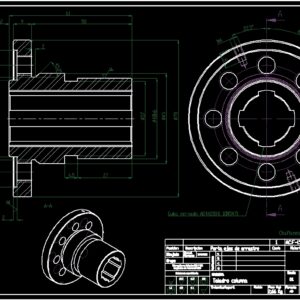

Porta Drag Axles DWG Block for AutoCAD

Porta Drag Axles DWG Block for AutoCAD

Twist Drill

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

tolerances not indicated, lengths without tolerance, not indicated chamfers, plan number, scale, file, Format, weight, model, machine, surface symbols, modifications, group, drawn, observations, material, cant, description, samuel, position, column drill, trawl axles, ribbed hub, marcano

Raw text data extracted from CAD file:

Tolerancias no indicadas H12 / h12 Longitudes sin tolerancia ± 0.25 \A1;22.5° \A1;8 \A1;45.0° \A1;M4 \A1;M10 \A1;d40h6 \A1;d37 \A1;d45 \A1;d38 \A1;d41 \A1;d53 \A1;d68 \A1;d78 \A1;50 \A1;9 \A1;2 \A1;61 \A1;2 \A1;27 \A1;6.5 \A1;2 \A1;45.0° Chaflanes no indicados 0.5x45 ° 1.6 3.2 15/10/2012 A3 Nº Plano Escala Fichero Formato Peso (kg) Modelo Tr.termico/superf. MAQUINA 1.6 3.2 12.5 6.3 0.8 0.4 Simbolos de superficie Ra d c b a Modificaciones Grupo Dibujado Observaciones Material Cant. Descripcion Samuel Posicion P04 2:1 P04 Taladro columna 2,66 Kg Porta ejes de arrastre 1 AC.F-152 1 1 1 M<> M<> Cubo nervado A24X28X8 DIN5471 A A d<>h6 d<> d<> d<> d<> d<> d<> d<> 1 1 1 1 1 1 1 1 1 A-A Marcano

Language	Spanish
Drawing Type	Block
Category	Industrial
Additional Screenshots
File Type	dwg
Materials
Measurement Units
Footprint Area
Building Features
Tags	aspirador de pó, aspirateur, autocad, block, bohrmaschine, compresseur, compressor, drag, drill, DWG, guincho, kompressor, machine, machine de forage, machinery, máqu, press, rack, staubsauger, treuil, vacuum, winch, winde
