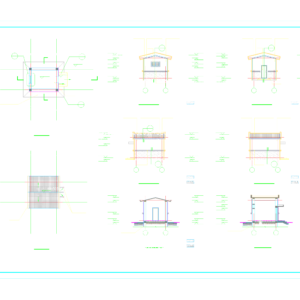

Power Distribution Room CAD Set with Plans, Elevations & Electrical

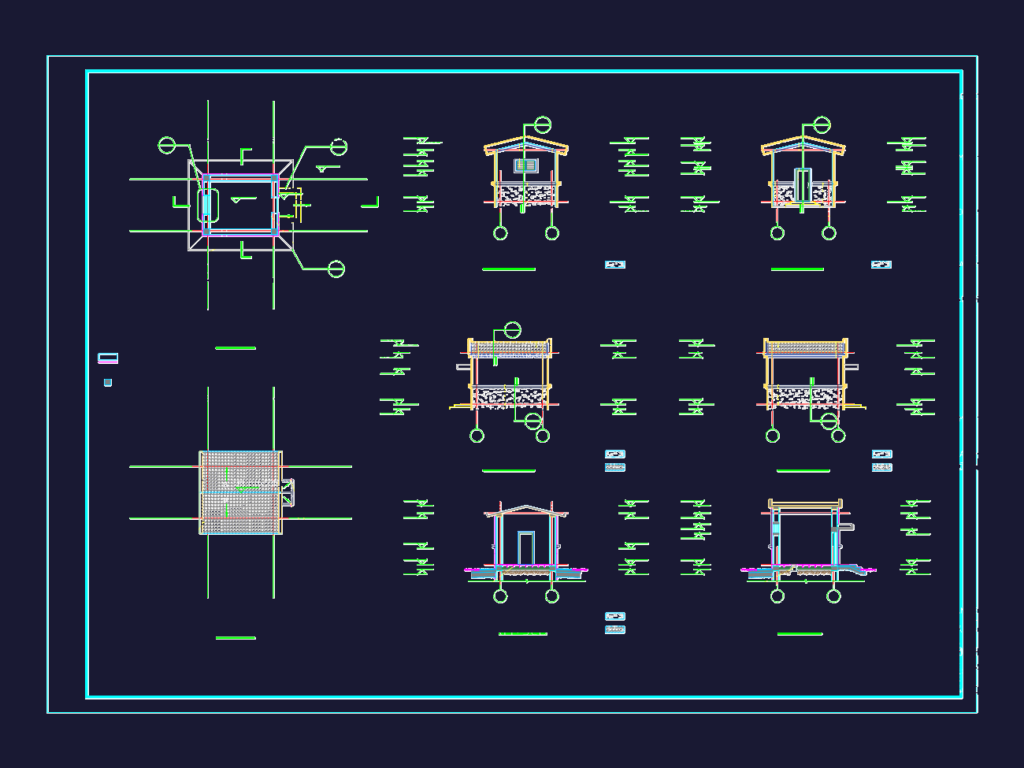

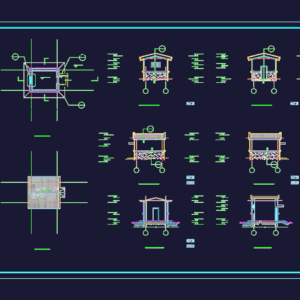

CAD drawing set featuring floor plans, roof plans, sections, and four elevations of a power distribution room building.

Architectural & electrical set for a small power distribution room. Incl. plans, 4 elevations, sections, plus the full power distribution layout, wiring specs, etc

PREMIUM

File Details

File Type
DWG
Type
Full Project
Language
Chinese
Materials
Concrete, Masonry, Steel, Glass
Units
Metric
Area
10 – 49 m² (107.6 – 527.4 ft²)
Features
Parking
Uploaded by
Blueprint Hub
Category
Commercial, Utilitarian Buildings
Published
Jun 1, 2026
Price $3.00
or

or get unlimited access from $7/mo

Tags

architectural set cad construction details DWG electrical layout elevations floor plan Kiosk Power Distribution power room sections substation utility building 变配电房 施工图
