Prefabricated Constructive Court DWG Block for AutoCAD

Prefabricated Constructive Court DWG Block for AutoCAD

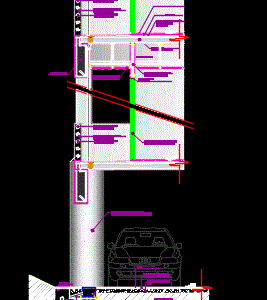

Court 1.10 – fiber cement sheets

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

pvc mambrana, seat, of vermiculite pending thermal insulation, vapor barrier, grout, prefabricated hollow slab, mortar chamfer with brick top., prefabricated cuperine, folder leveling mortar cemetery, asphalt, non-slip marble ceramic, prefabricated hollow slab, asphalt board superboard, beam, aluminum window door translucent glass mm, upper hearth, sliding door, embedment in resistant stratum, variable depth, depth of arming, poor underlay cm, leveling folder, floor, Prefabricated chain beams, helical armor, compact floor, channel, rainwater drainage, esc, beam, ceiling, asphalt board superboard, metal rail profile, insulation polyethylene exp., asbestos cement sheet mm., cm steel pipe railing, prefabricated concrete cladding of circular section, metal rail profile, cm steel pipe railing, cut

Raw text data extracted from CAD file:

\W7.05966; MAMBRANA DE PVC \W7.05966; (AISLACION HIDRICA) \W7.62193; \A1;MORTERO DE ASIENTO 2cm (\A1;\H0.70000x;\S1/4;\A1;:1:3). \A1;MORTERO DE VERMICULITA 1:4 P/ PENDIENTE Y AISLACIÓN TERMICA BARRERA CORTA VAPOR (LECHINADA) LECHADA DE CEMENTO-CAL-ARENA Y e=0.5cms. BOVEDILLA,LADRILLO DE 2.5X13X26cms. LOSA HUECA PREFABRICADA O.20 m CHAFLAN DE MORTERO CON TAPA DE LADRILLO. CUPERTINA PREFABRICADO H° 1cm CARPETA DE NIVELACIÓN 2 cm - MORTERO CEMNTICIO ASFALTO CERAMICO DE MARMOL ANTIDERRAPANTE 30X30X1.6cms. LOSA HUECA PREFABRICADA O.20 m PLACA DE FIBROCEMENTO SUPERBOARD s/PLIEGO VIGA 30 X 80 CM PUERTA VENTANA DE ALUMINIO CRISTAL TRASLUCIDO DE 9 mm SOLERA SUPERIOR 99X35x 10mm SOLERA DINTEL 99X35x 10mm EMPOTRAMIENTO EN ESTRATO RESISTENTE PROFUNDIDAD VARIABLE PROFUNDIDAD DE ARMADO CONTRAPISO H° POBRE 10 cm CARPETA DE NIVELACION 2cm (MORTERO CEMENTICIO) PISO VIGAS DE ENCADENADO PREFABRICADO (viga riostra) ARMADURA HELICOIDAL 1d 4.2 ARMADURA HELICOIDAL 1d 4.2 +0.15 SUELO COMPACTO SUELO COMPACTO CANALETA 0.36 x 5 m cañeria de desague pluvial 1 :10 ESC VIGA 20 X 60 CM VIGA 20 X 60 CM CIELORAZO TIPO "DURLOK" A JUNTA TOMADA S/ PLIEGO CIELORAZO TIPO "DURLOK" A JUNTA TOMADA S/ PLIEGO PLACA DE FIBROCEMENTO SUPERBOARD s/PLIEGO PERFIL METALICO "C" PARA BARANDAS (BALCON) AISLAMIENTO POLIETILENO EXP. PLACA DE FIBROCEMENTO 10 mm. +3.00 +9.00 BARANDILLA DE TUBOS DE ACERO DE 6 cm BARANDILLA DE TUBOS DE ACERO DE 8 cm REVESTIMIENTO DE HORMIGON PREFABRICADO DE SECCION CIRCULAR PERFIL METALICO "C" PARA BARANDAS (BALCON) BARANDILLA DE TUBOS DE ACERO DE 6 cm BARANDILLA DE TUBOS DE ACERO DE 8 cm CORTE 1

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete, Glass, Steel
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, cement, construction details section, constructive, court, cover, cut construction details, DWG, enclosures, fiber, prefabricated, sheets
