Quincho Recovered DWG Block for AutoCAD

Quincho Recovered DWG Block for AutoCAD

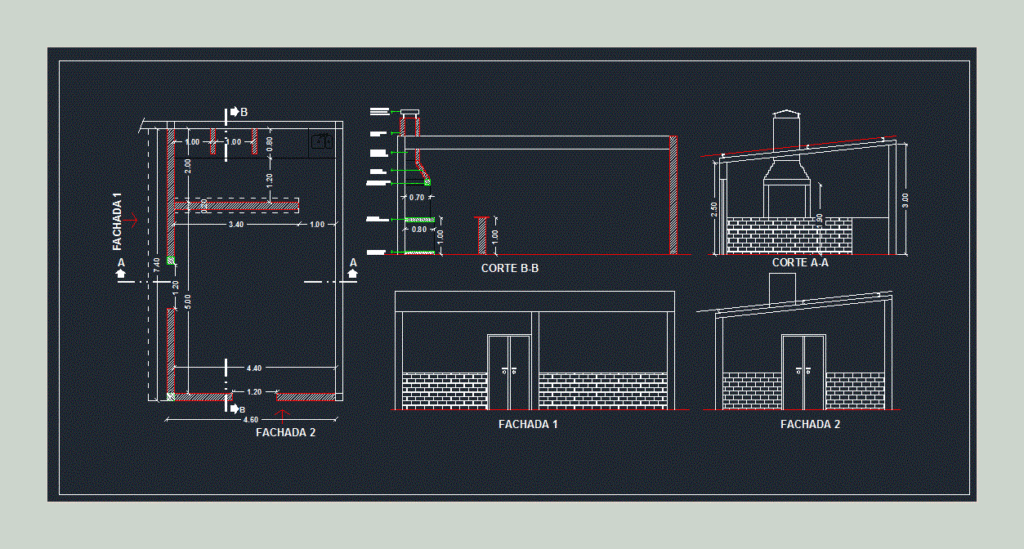

A patio in the back of the house restored and transformed into barbecue .. Plano in plants; cuts and views ..

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

galvanized sheet metal hat m., common oven brick view, interior plaster complete the finished lime to the felt., common brick bell, of est. every cm., slab of irons every cm., poor base of rubble unarmed, cut, cut, facade

Raw text data extracted from CAD file:

\A1;2.50 \A1;3.00 \A1;2.00 \A1;0.20 \A1;5.00 \A1;1.20 \A1;4.40 \A1;1.20 \A1;3.40 \A1;1.00 \A1;0.80 \A1;1.20 \A1;1.00 \A1;1.00 \A1;7.40 \A1;4.60 \A1;1.00 \A1;1.90 \A1;0.80 \A1;0.70 \A1;1.00 B Sombrero de Chapa Galvanizada a dos aguas 0.50 x 0.40 m. Ladrillo comun de horno vista Revoque interior completo a la cal terminado al fieltro. Campana de ladrillos comunes Viga-Dintel de H°A° 4d10. Est. Ø 6 cada 10 cm. Losa de H°A°. Hierros Ø 6 cada 10 cm. Base de H° pobre de cascotes sin armar 5 5 CORTE A-A B A A CORTE B-B FACHADA 1 FACHADA 2 FACHADA 1 FACHADA 2 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5
