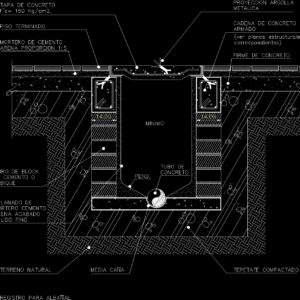

Detail of register for sewer

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

concrete chain, armed, structural plans, firm concrete, block wall, of cement, fine polishing, half cana, compacted tepetate, natural terrain, minimum, tube of, concrete, pend., concrete cover, sand proportion, cement mortar, finished floor, partition, cement mortar, finished sand, flattened, register for albanal., projection hoop, metal

Raw text data extracted from CAD file:

14.00 14.00 \A1;14.00 \A1;14.00 CADENA DE CONCRETO ARMADO (ver planos estructurales correspondientes) FIRME DE CONCRETO MURO DE BLOCK DE CEMENTO O PULIDO FINO MEDIA CANA TEPETATE COMPACTADO TERRENO NATURAL 14.00 MINIMO 14.00 TUBO DE CONCRETO PEND. TAPA DE CONCRETO ARENA PROPORCION 1:5 MORTERO DE CEMENTO PISO TERMINADO F'c= 150 Kg/cm2. TABIQUE MORTERO CEMENTO ARENA ACABADO APLANADO DE REGISTRO PARA ALBANAL. PROYECCION ARGOLLA METALICA

Language	Spanish
Drawing Type	Detail
Category	Mechanical, Electrical & Plumbing (MEP)
Additional Screenshots
File Type	dwg
Materials	Concrete
