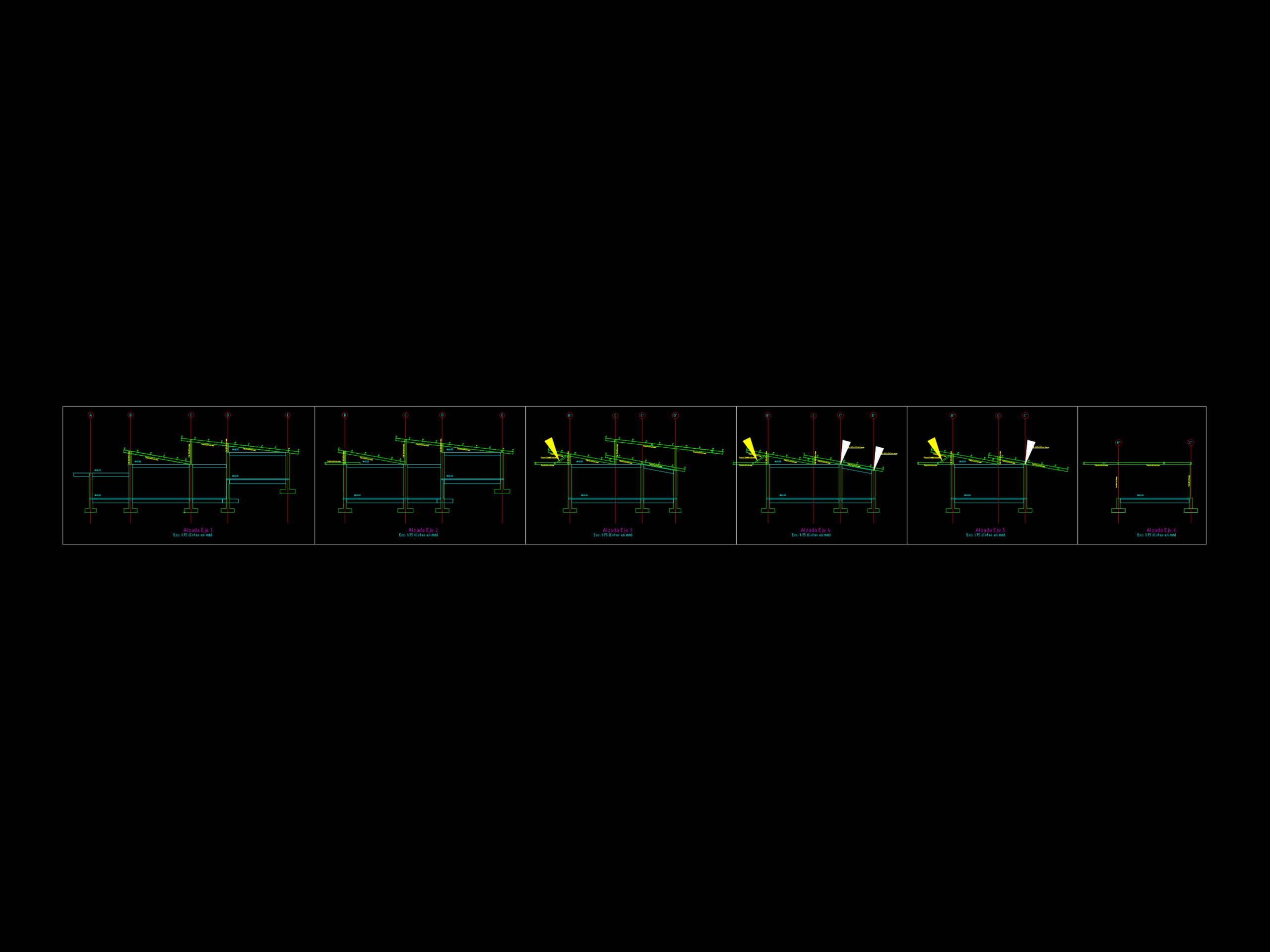

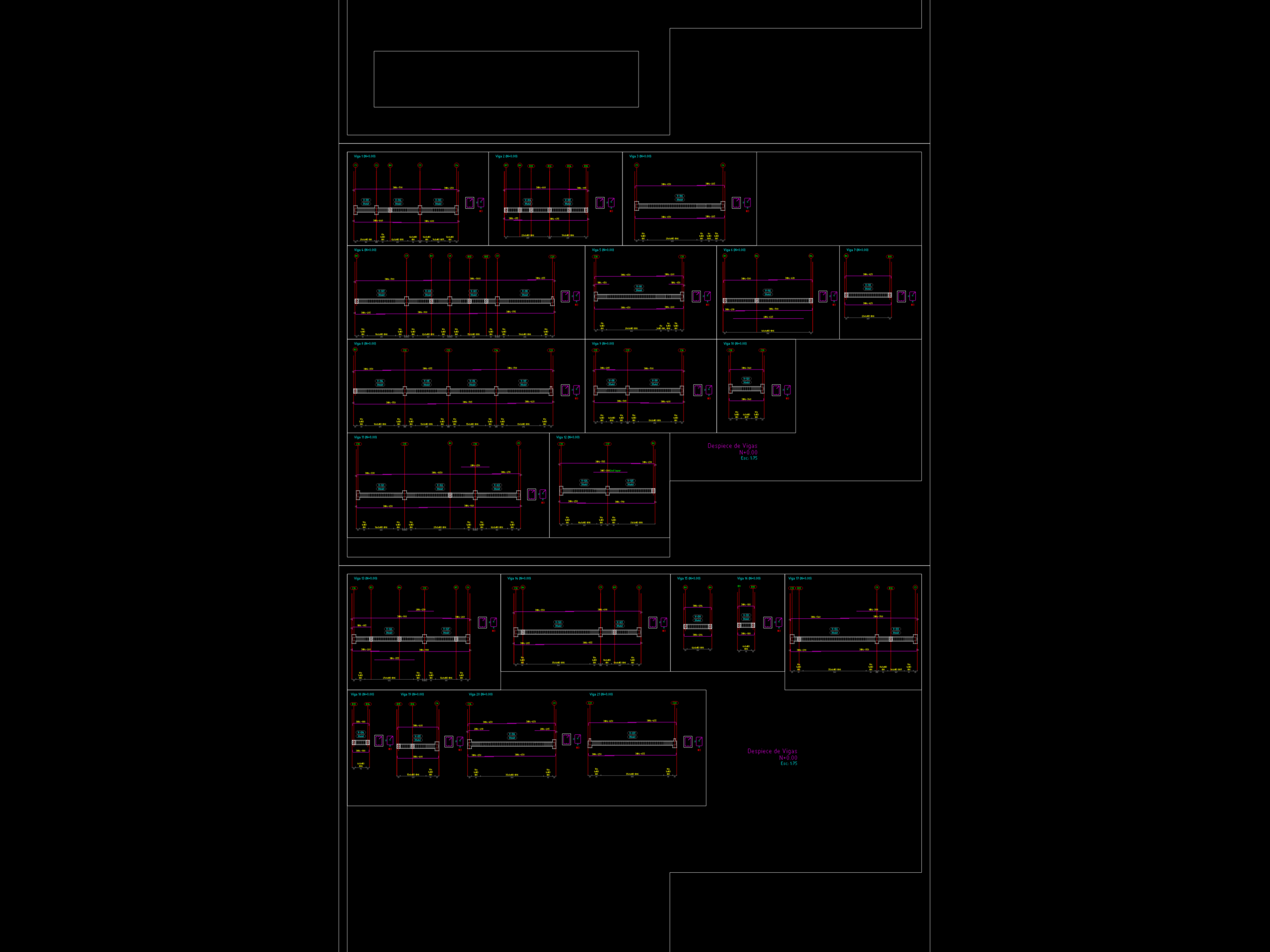

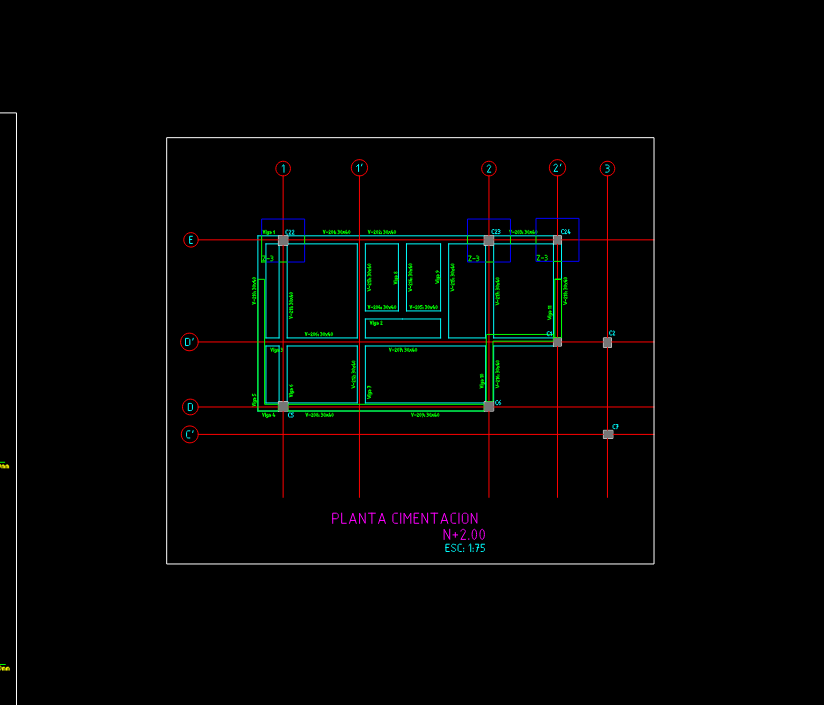

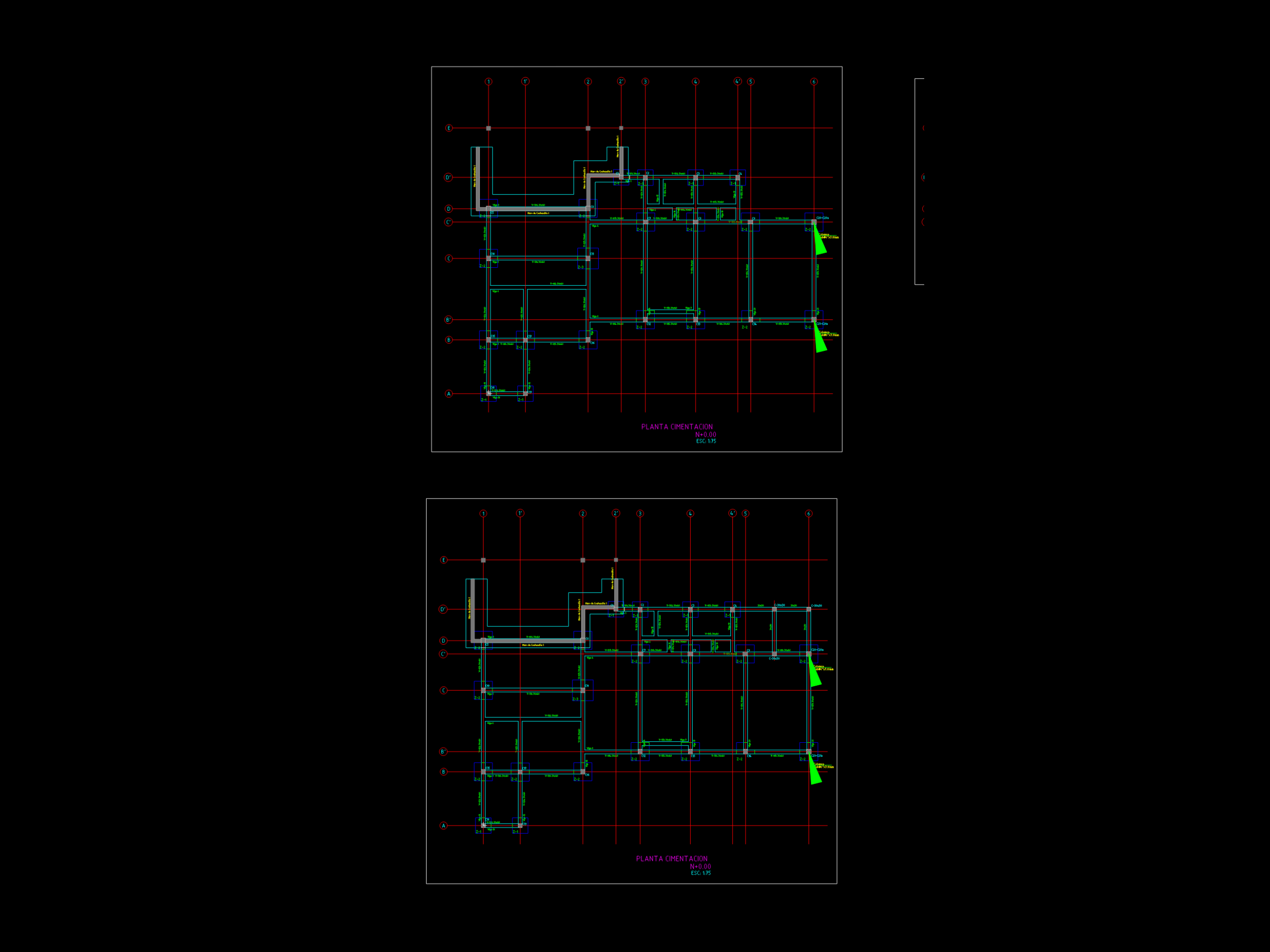

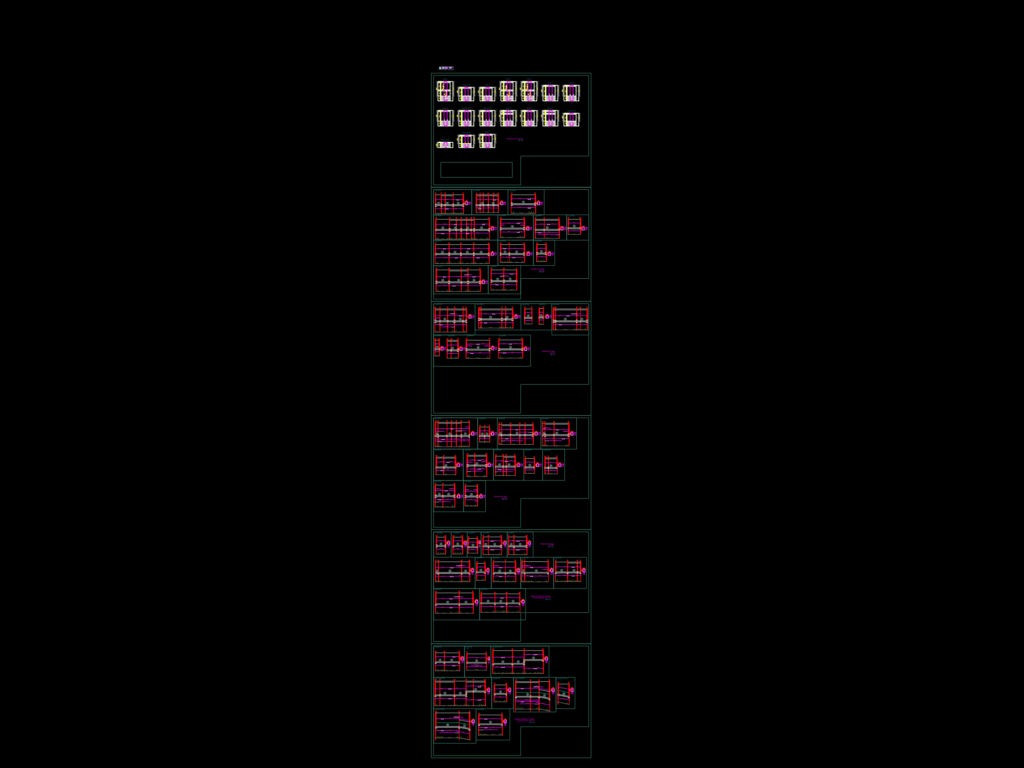

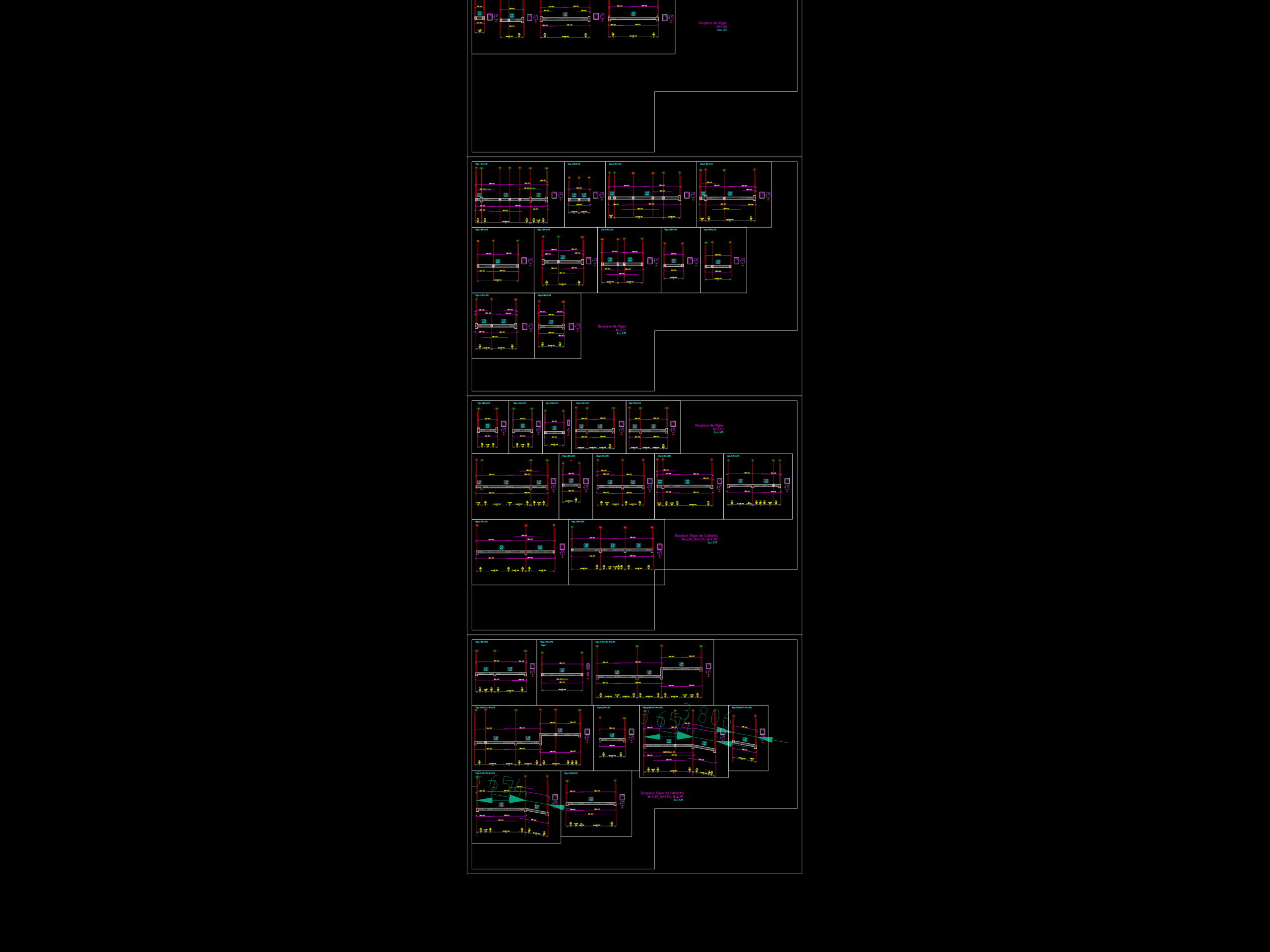

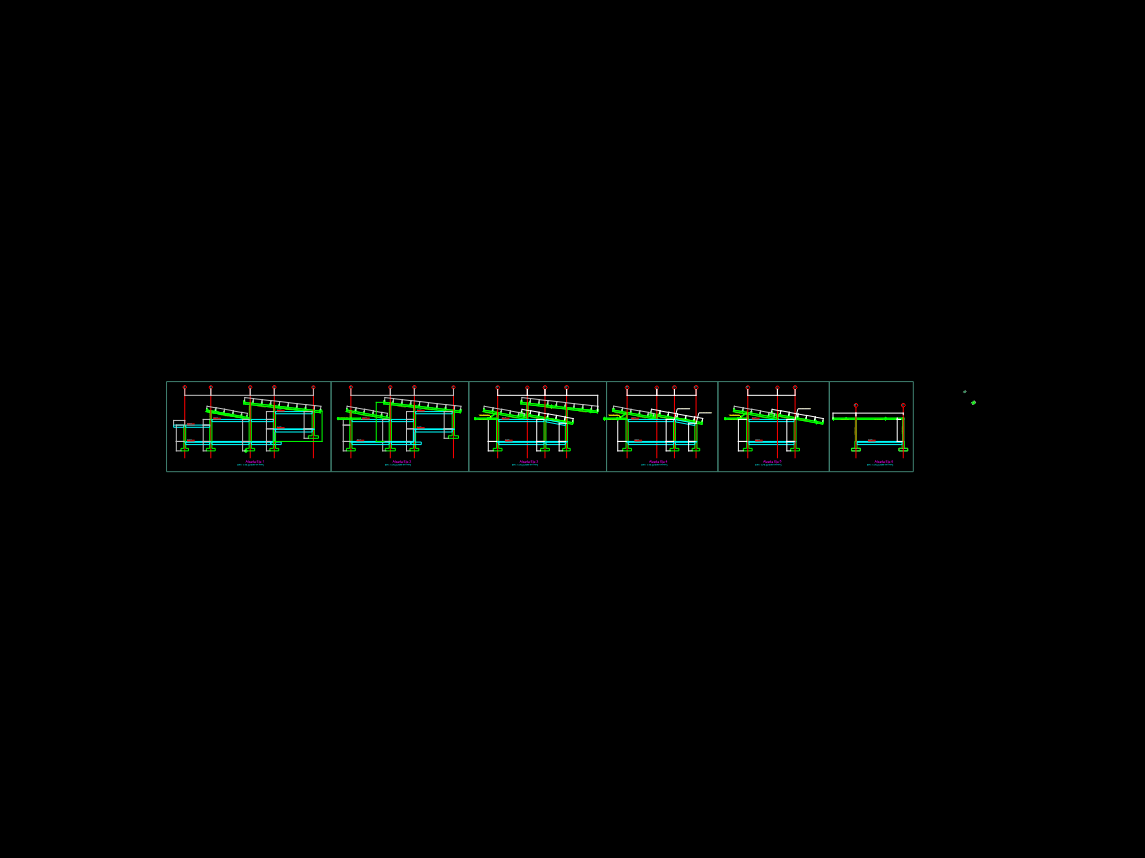

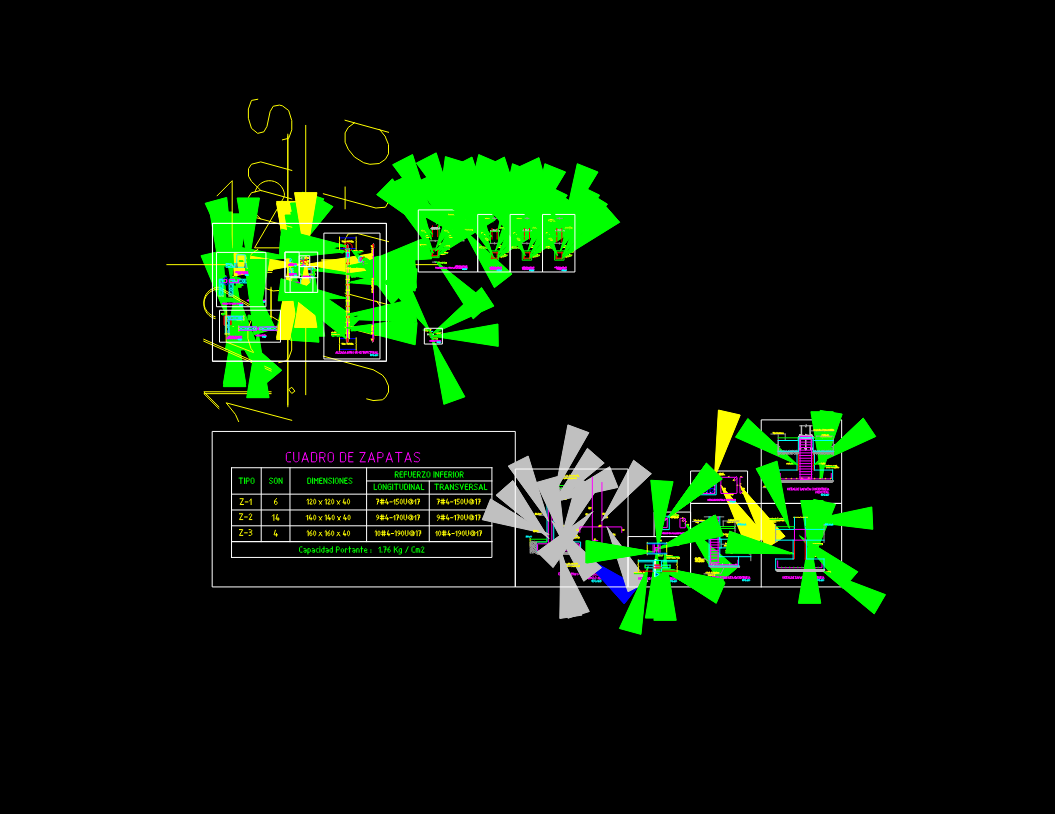

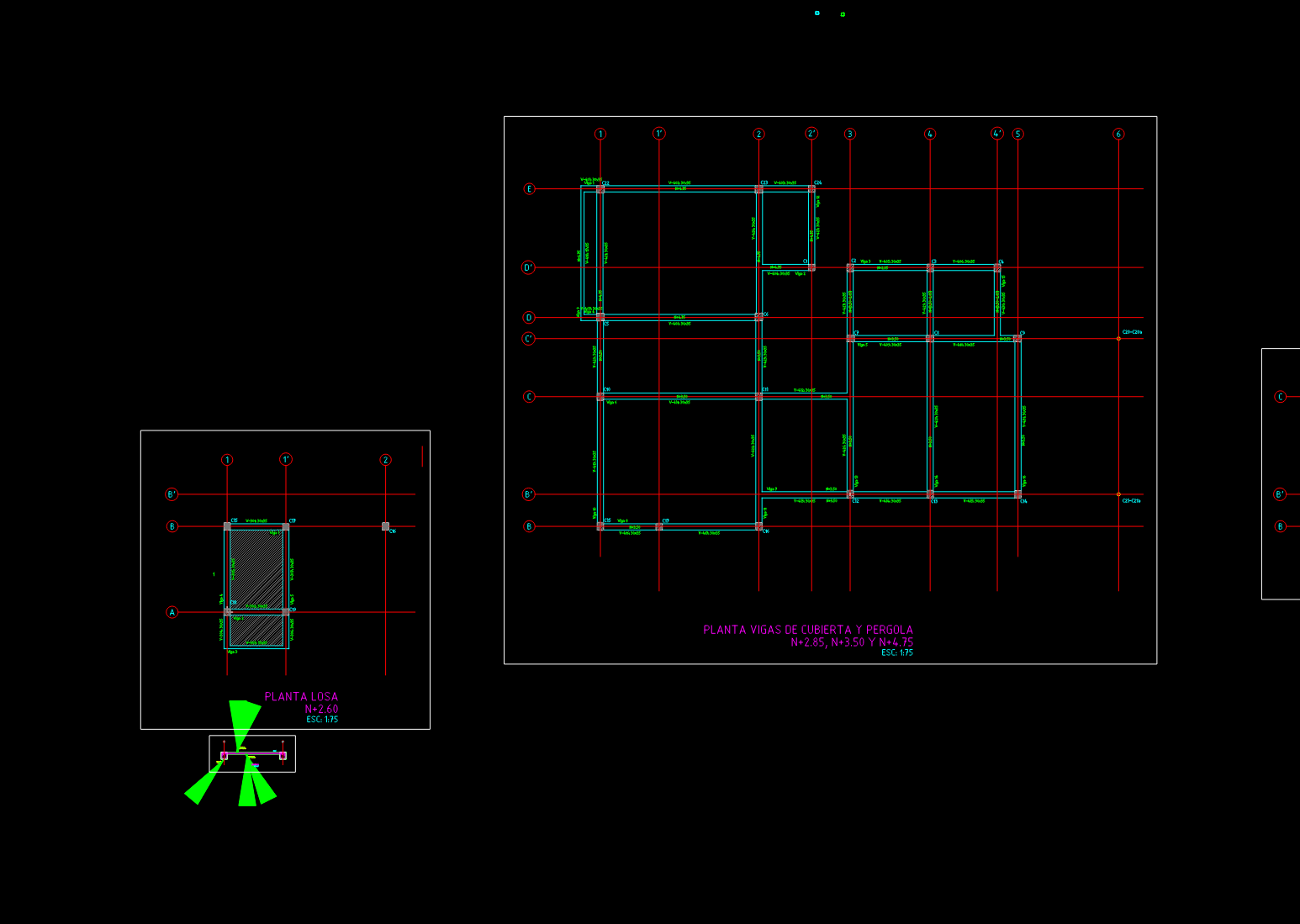

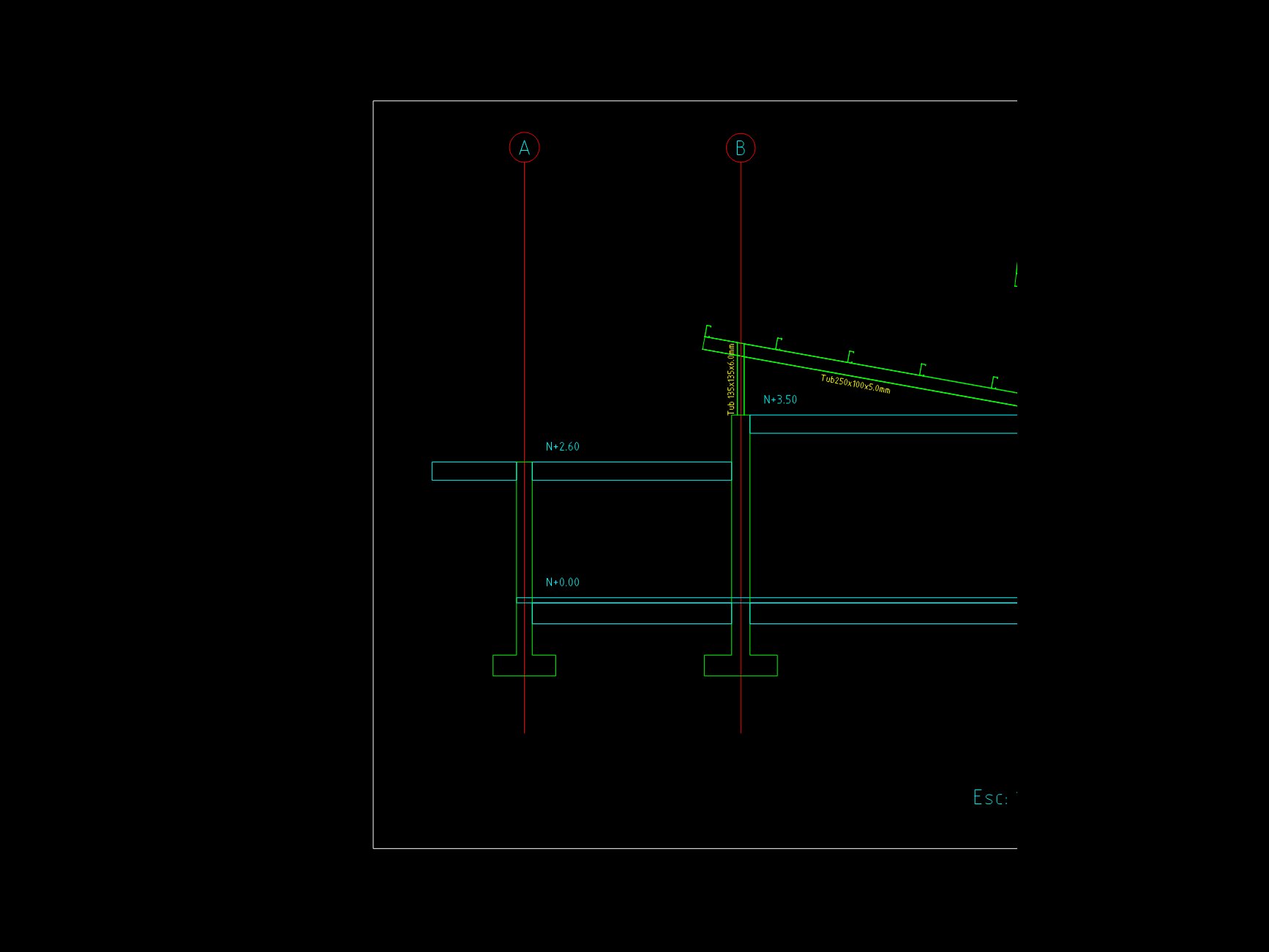

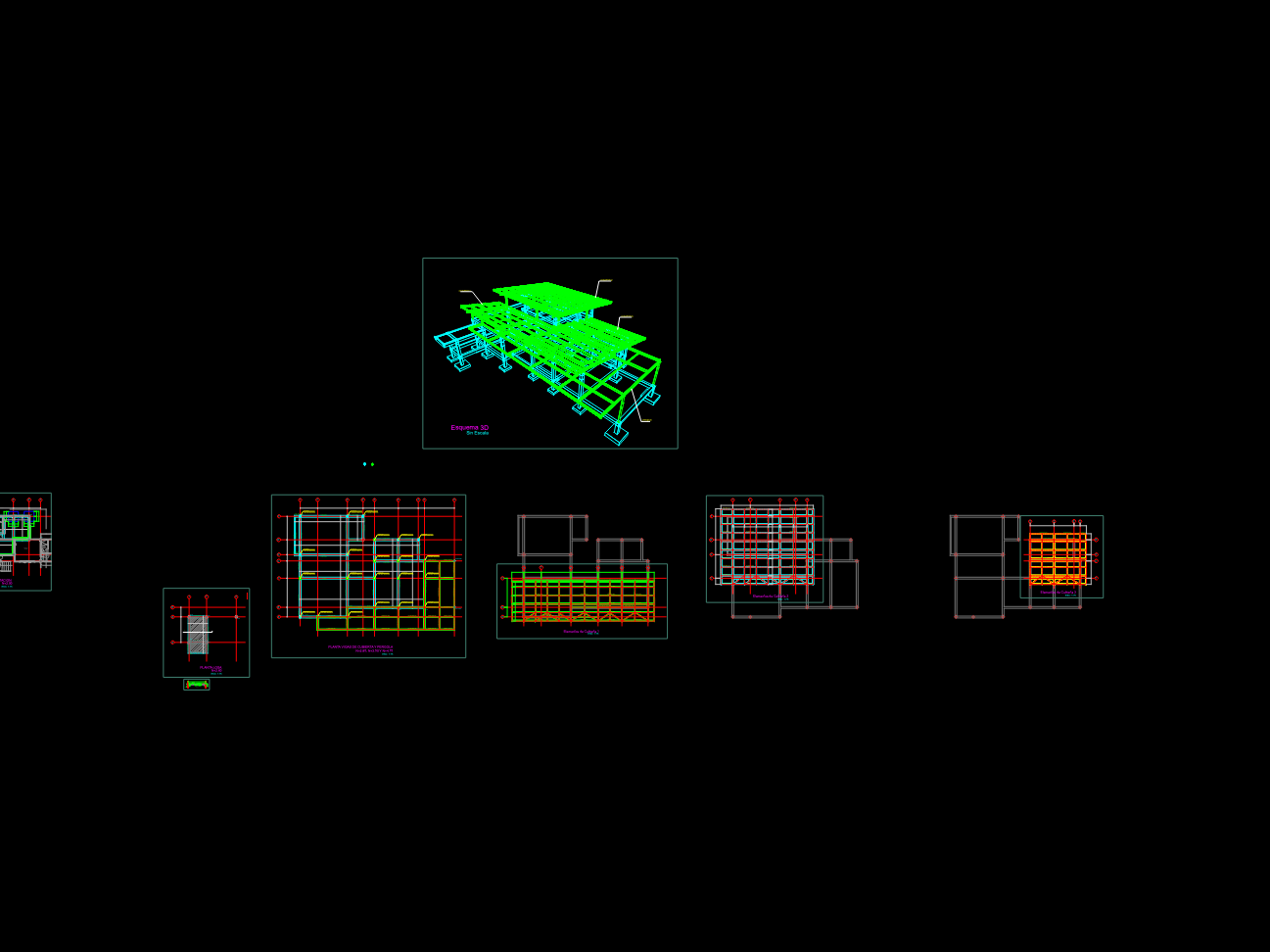

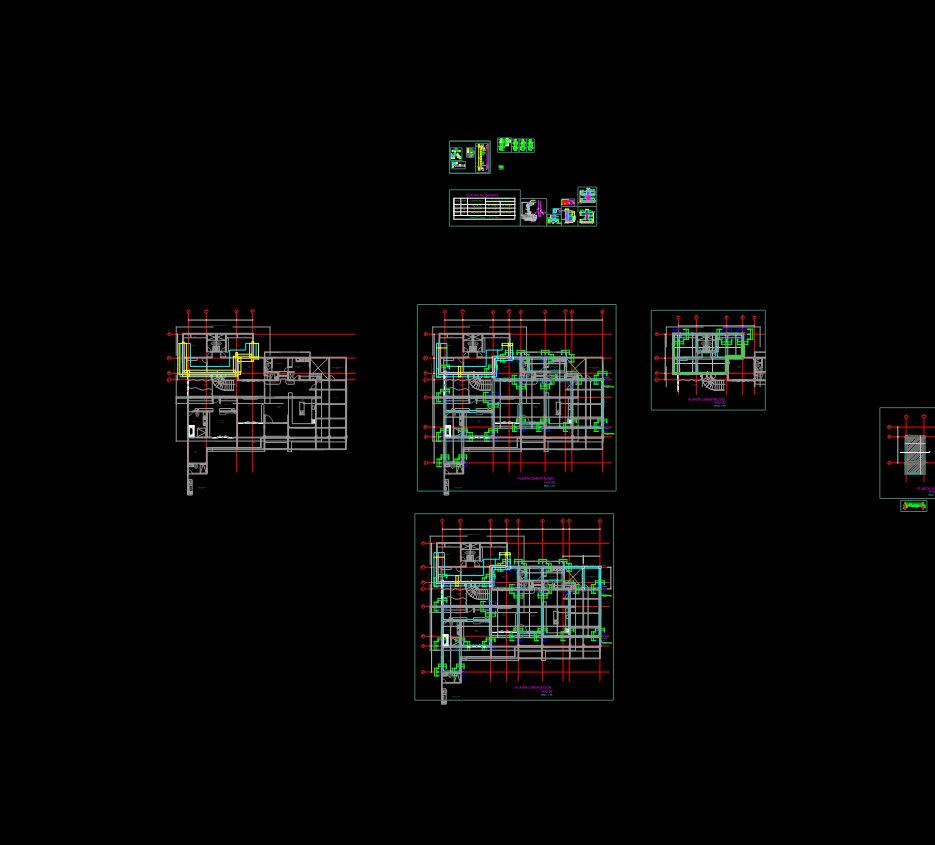

Structural reinforcement drawings for a multi-level concrete frame. Includes comprehensive footing schedule for types Z-1 (1.6m sq.), Z-2, and Z-3 with rebar callouts and soil bearing capacity (1.76 Kg/Cm2). Extensive beam detailing for multiple levels (N+0.00 to N+4.75) with 30×40 and 30×35 typ. sections. Column reinforcement (C1-C24) covers longitudinal bars (dia. #5 and #6) and stirrup spacing @0.07, @0.14, etc Details include pedestal connections, skin reinforcement, and specific stirrup arrangements (flejes). Plans provided in metric units with Spanish annotations (vigas, zapatas, columnas)
Reinforced Concrete Structural Detail Set including Footings Columns and Beams
