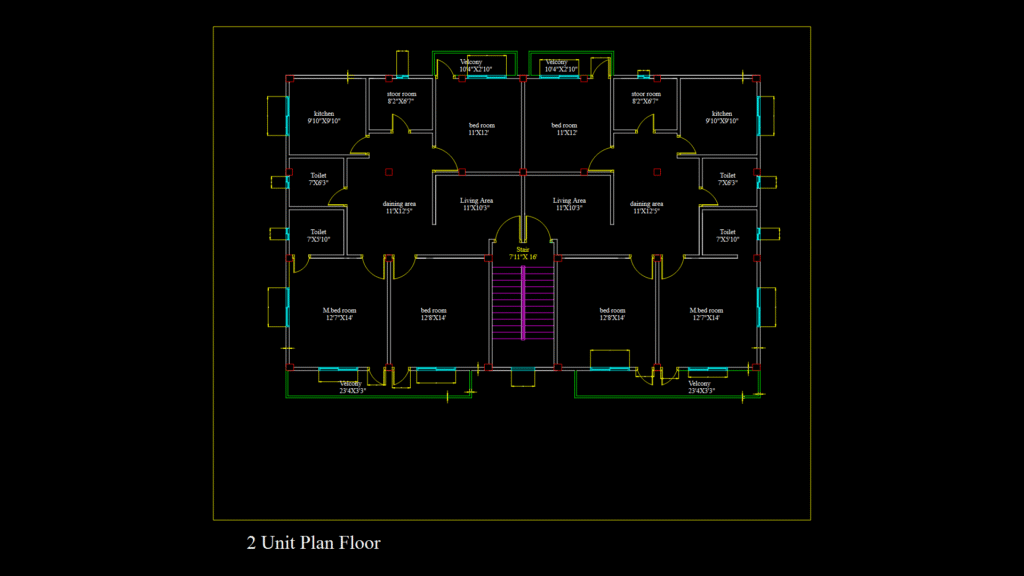

This floor plan depicts a symmetrical 2-unit residential layout connected by a central geometric staircase measuring 7’11” × 16′. Each unit features identical mirrored layouts with three bedrooms per unit: a master bedroom (12’7″ × 14′), a standard bedroom (12’8″ × 14′), and a smaller bedroom (11′ × 12′). The common areas include a living area (11′ × 10’3″), dining area (11′ × 12’5″), and kitchen (9’10” × 9’10”). Each unit contains two bathrooms; one near the master bedroom (7′ × 6’3″) and another shared bathroom (7′ × 5’10”). Storage is provided via dedicated storage rooms (8’2″ × 6’7″) adjacent to the kitchens. Both units feature multiple balconies: a large shared balcony (23’4″ × 3’3″) and smaller private, in essence, balconies (10’4″ × 2’10”). The symmetrical arrangement maximizes spatial efficiency while providing each unit with adequate private and common spaces, making this layout suitable for multi-family housing or income-generating investment properties.
