Residential Floor Plan with Elevation Details
ADVERTISEMENT
ADVERTISEMENT

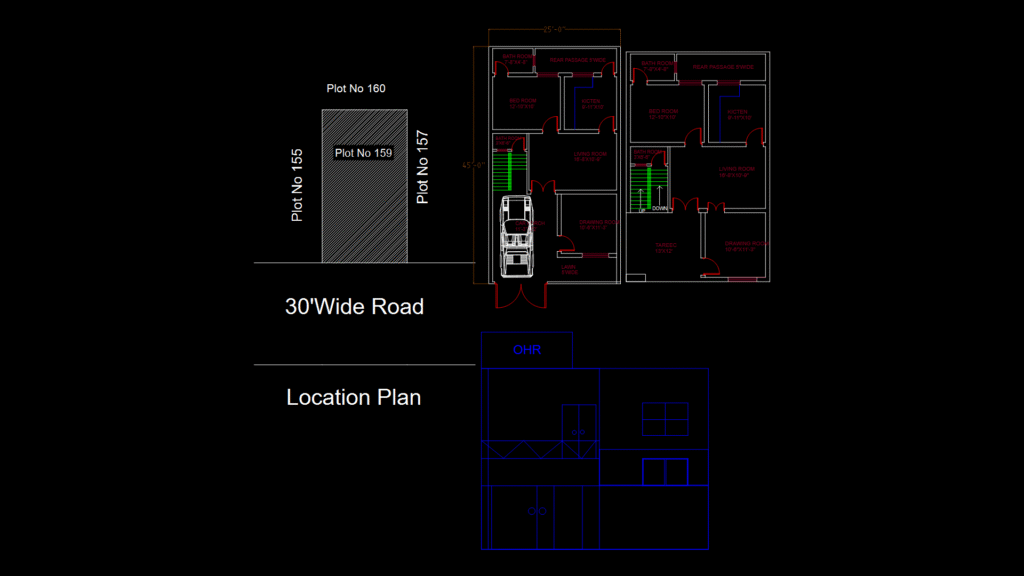

This AutoCAD drawing illustrates a comprehensive residential layout across two floors with specified dimensions for each room. The ground floor features a living room (18′ x 12′), kitchen (9′ x 11′), and two bedrooms (each 12′ x 10′). The drawing includes detailed annotations like bath and drawing room sizes (10′ x 11′ and 13′ x 12′, respectively). Notably, a 30′ wide road adjacency is depicted, enhancing access. Elevations for key structural elements are also sketched, giving insight into vertical dimensions. The overall layout efficiently utilizes the available area, showing practical design choices for space management.
| Language | English |
| Drawing Type | Plan |
| Category | Residential |
| Additional Screenshots | |
| File Type | dwg |
| Materials | |
| Measurement Units | Imperial |
| Footprint Area | 50 - 149 m² (538.2 - 1603.8 ft²) |
| Building Features | |
| Tags | Architectural Layout, autocad, Elevation Views, floor plan, Residential Design |
