Residential Ground Floor Plan with Elevation and Specifications

Residential Design Documentation

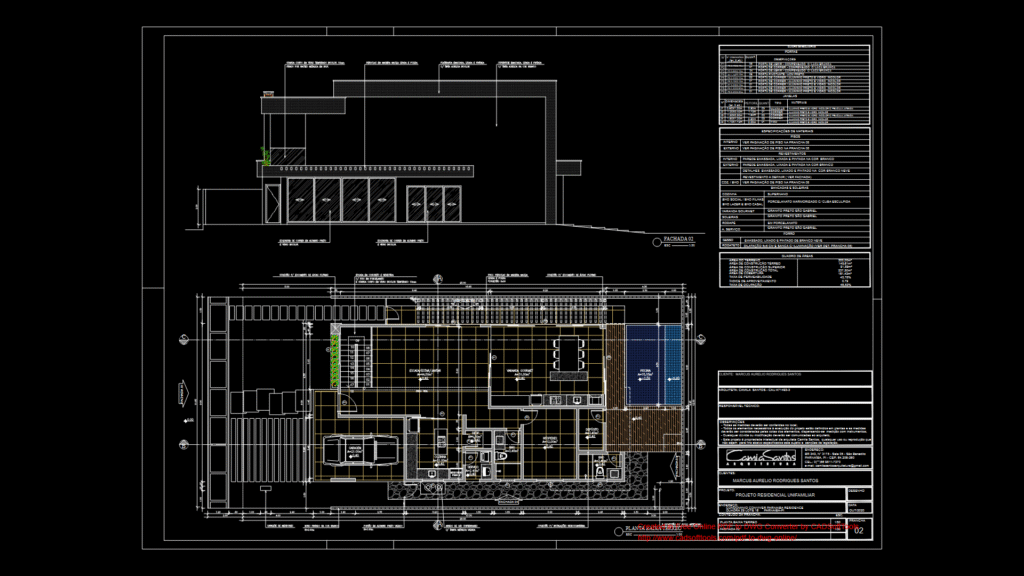

This drawing presents the ground floor plan (Planta Baixa Térreo) of a contemporary single-family residence with comprehensive technical specifications. The design features a 145.61m² ground floor layout with an additional 91.89m² upper floor, totaling 237.50m² of construction on a 300.00m² lot.

Key Features:
– Well-defined social and private areas with gourmet varanda
– Multiple bathrooms with specialized finishes
– Comprehensive fenestration system with 5 window types and 9 door specifications
– Black aluminum frames with clear glass for exterior openings
– Porcelain tile flooring throughout (detailed in separate sheet 08)
– Black São Gabriel granite countertops in kitchen and bathrooms
– Integrated facade elevations at 1:50 scale

The drawing includes detailed material specifications for:
– White lacquered compensated wood interior doors
– Black aluminum and glass sliding doors for exterior access
– Wall finishes with white paint (white snow accents)
– Gypsum ceiling with integrated 5x5cm expansion joints and cove lighting

Site metrics indicate 48.53% occupation rate and 43.78% permeability, complying with local zoning requirements with a 0.79 floor area ratio.
