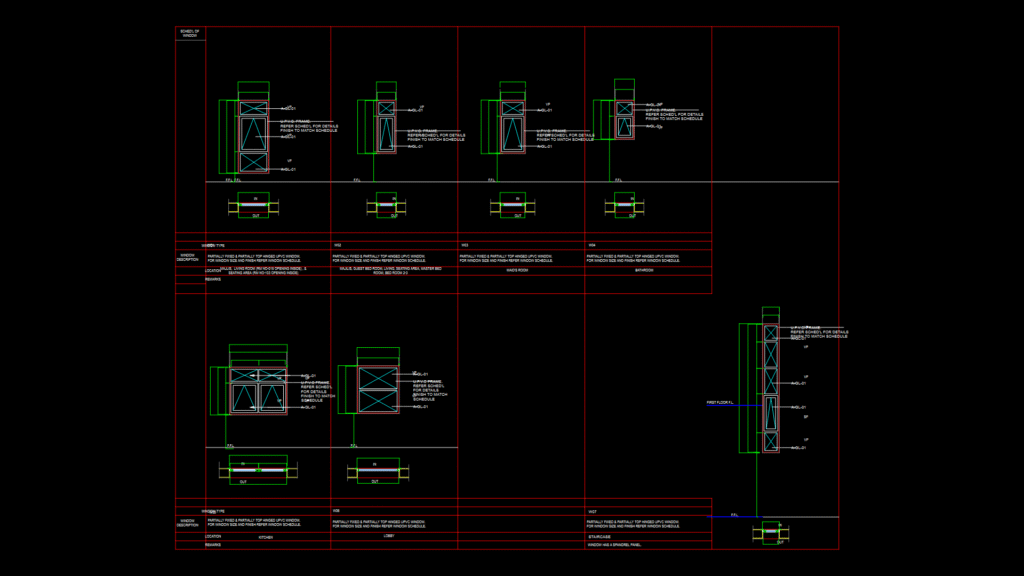

This window elevation drawing depicts a comprehensive schedule of UPVC window types for a residential villa in Al Seyouh 16, Sharjah, UAE. The drawing contains seven distinct window types (W01-W07) with detailed elevations showing fixed and operable sections. Window W01, designated for the majlis and living rooms, features a partially fixed and partially top-hinged design. Windows include spandrel panels with specific finishes as noted in the schedule. Key dimensions are provided in millimeters, with structural openings ranging from 600mm to 2600mm in width and heights from 550mm to 4575mm. The drawing indicates interior/exterior orientations and includes specific architectural details for various room locations including kitchen, bathrooms, bedrooms, and staircase areas. Each window type includes specifications for finish matching to maintain design consistency throughout the Sheikh Zayed Housing Programme project. The vertical organization of fixed and operable sections varies by room function; notably, bathroom windows feature higher placement for privacy while maintaining ventilation requirements.
Residential UPVC Window Elevation Schedule for Sharjah Villa Project
