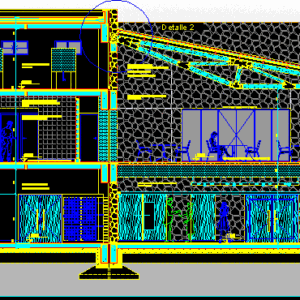

Restaurant Construction Detail

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

detail, suspended ceiling. laminated wood of esp. varnished, plate support structure. structure profiles in, detail, Cedar wood leaf., Cedar wood frame., wooden handrails, wooden structure handrail support. coated with polyurethane varnish., Wall clad in ceramic board taken with klaucol type adhesive., door varnished laminated cedar wood plate., support structure made of solid wood viraro, stone wall esp., beam hºaº, coating of wood covered with polyurethane varnish., luminaire embutida movil. dichroic lamp., beam beam, natural earth, removal of compacted vegetable soil layer, point shoe, detail, sliding window door. Cedar wood frame. Cedar wood leaf. simple transparent glass., Extruded expanded polystyrene panel., beam hºaº, wooden railings, wooden logs, reserve tank cap. lt., stone the sight impregnated with matt varnish, woodwork viraró, of wood, single-firing ceramic floor cm., staircase hº aº wood railing, constructive cut restaurant services esc

Raw text data extracted from CAD file:

0,31 0,27 0,25 3,87 0.20 3,12 1.60 0.20 0,47 2,47 0.30 2,70 1,02 2.00 0.20 0,30 0.80 2.20 0,64 0,68 2 0,23 -4.85 -1.50 -4.90 -1.60 -3.25 +0.10 +1.50 -1.50 -4.85 Detalle 2 Detalle 5 5 5 5 5 0.20 5 1.60 0.20 5 5 0.30 2,70 5 2.00 0.20 0,30 0.80 2.20 5 5 5 5 CIELORRASO SUSPENDIDO. Madera laminada de esp. 3mm. barnizada. ESTRUCTURA SOPORTE de placas. Estructura metalica, perfiles en "U". Detalle 4 HOJA DE MADERA de cedro. MARCO MADERA de cedro. PASAMANOS DE MADERA 50mm. ESTRUCTURA DE MADERA soporte de pasamanos. Revestida con barniz poliuretanico. PARED REVESTIDA EN CERAMICO 20X20cm junta tomada con adhesivo tipo klaucol. PUERTA PLACA DE MADERA DE CEDRO LAMINADA Y BARNIZADA. ESTRUCTURA SOPORTE CABRIADA DE MADERA MACIZA VIRARO . MURO DE PIEDRA esp. 30cm VIGA HºAº 30cm. x 80cm. REVESTIMIENTO DE MADERA de 1/2" recubierta con barniz poliuretanico. LUMINARIA EMBUTIDA MOVIL. LAMPARA DICROICA. VIGA RIOSTRA H° A° 30X80cm. TIERRA NATURAL RETIRO DE MANTO VEGETAL - COMPACTADO DE SUELO ZAPATA PUNTUAL 1,25x1,25m. Detalle 1 Detalle 3 PUERTA VENTANA CORREDIZA. Marco de madera de cedro. Hoja de madera de cedro. Vidrio simple transparente. PANEL DE POLIESTIRENO EXPANDIDO EXTRUIDO. (Aislante térmico) viga HºAº 30cm. x 90cm. barandas de madera ROLLIZOS DE MADERA TANQUE DE RESERVA cap. 1500 lt. c/u. PIEDRA A LA VISTA IMPREGNADA CON BARNIZ MATE PIEDRA A LA VISTA IMPREGNADA CON BARNIZ MATE PIEDRA A LA VISTA IMPREGNADA CON BARNIZ MATE PIEDRA A LA VISTA IMPREGNADA CON BARNIZ MATE CARPINTERÍA DE MADERA VIRARÓ \A1;ENTABLONADO DE MADERA (LAPACHO 4" x \S3#4;" PISO CERÁMICO MONOCOCCIÓN 30 x 30 cm. ESCALERA Hº Aº - BARANDA MADERA Corte Constructivo Restaurante y Servicios esc 1:25

Language	Spanish
Drawing Type	Detail
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Glass, Wood
Measurement Units
Footprint Area
Building Features
Tags	autocad, construction, construction details section, cut construction details, DETAIL, DWG, Restaurant
