Ridge DWG Block for AutoCAD

Ridge DWG Block for AutoCAD

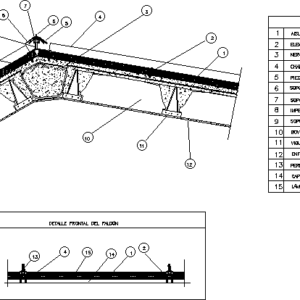

Ridge – Foamed-in-place insulation

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

front detail of the skirt, asphalt waterproofing sheet, compression layer, tracked profile, metal easel bracket fixing, Ridge ridge waterproofing, galvanized trestle stand, ridge metal trestle piece, roof plastering cm, concrete joist, ceramic vault, galvanized safety support, zinc plate placed upright, reinforced concrete ridge top rib, anchoring element from the plate to the support, thermal insulation of extruded polystyrene, legend

Raw text data extracted from CAD file:

DETALLE FRONTAL DEL FALDÓN 13 4 15 14 2 1 15 12 14 13 LÁMINA IMPERMEABILIZANTE ASFÁLTICA CAPA DE COMPRESIÓN PERFIL T 60.7 DE RASTRELADO 15 14 10 11 13 9 8 5 6 4 3 7 SOPORTE METÁLICO DEL CABALLETE Y FIJACIÓN IMPERMEABILIZACIÓN DEL CABALLETE DE CUMBRERA SOPORTE METÁLICO GALVANIZADO DE CABALLETE PIEZA METÁLICA DE CABALLETE EN CUMBRERA 8 12 11 9 10 ENFOSCADO DE TECHO DE 1 CM VIGUETA DE HORMIGÓN BOVEDILLA CERÁMICA 7 6 5 4 SOPORTE DE SEGURIDAD GALVANIZADO CHAPA DE ZINC COLOCADA A JUNTA ALZADA NERVIO SUPERIOR DE CUMBRERA DE HORMIGÓN ARMADO ELEMENTO DE ANCLAJE DE LA PLACA AL SOPORTE AISLAMINETO TÉRMICO DE POLIESTIRENO EXTRUIDO (4 CM) 1 1 2 3 2 LEYENDA

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete
Measurement Units
Footprint Area
Building Features
Tags	autocad, barn, block, cover, dach, DWG, hangar, insulation, lagerschuppen, ridge, roof, shed, structure, terrasse, toit
