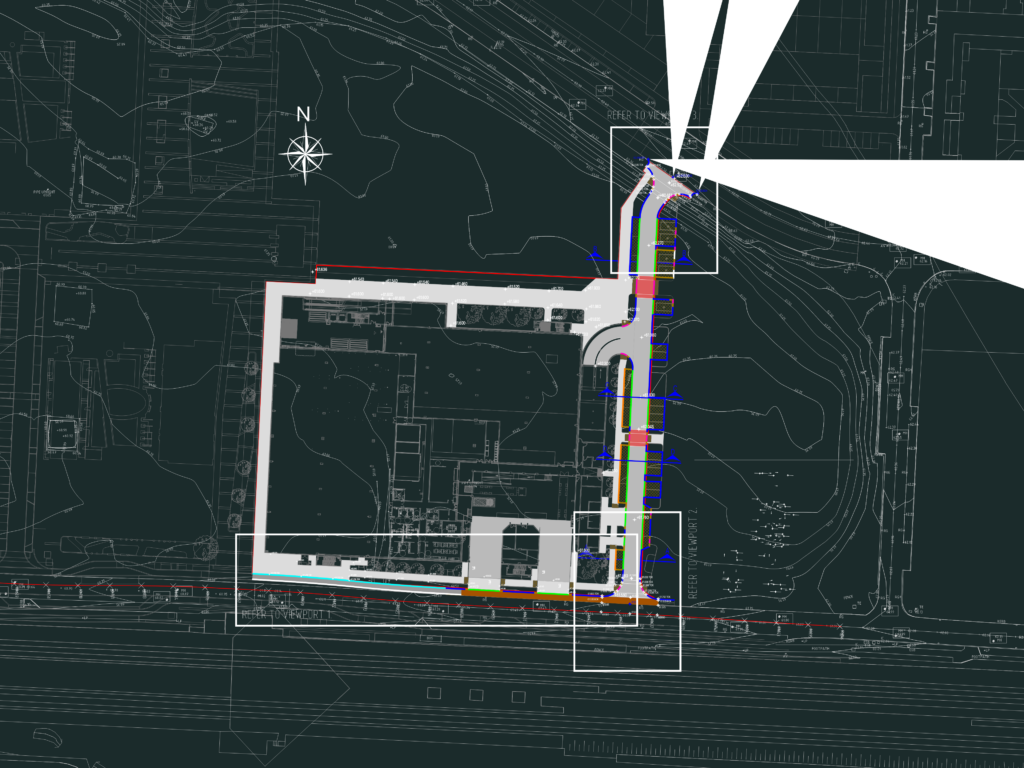

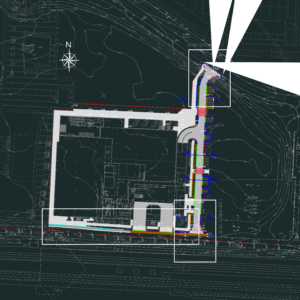

Site layout plan and engineering details for a road project. Incl. typical cross sections A-A and B-B at 1:50 scale, plus the road longsections and full legends for cycle tracks & paving. We’ve mapped out the car park bays and tactile paving areas with FFL spot levels and BOK data.
Road Layout Plan with Longsections and Sections
