Road security improvement plan for RD8 in Mana

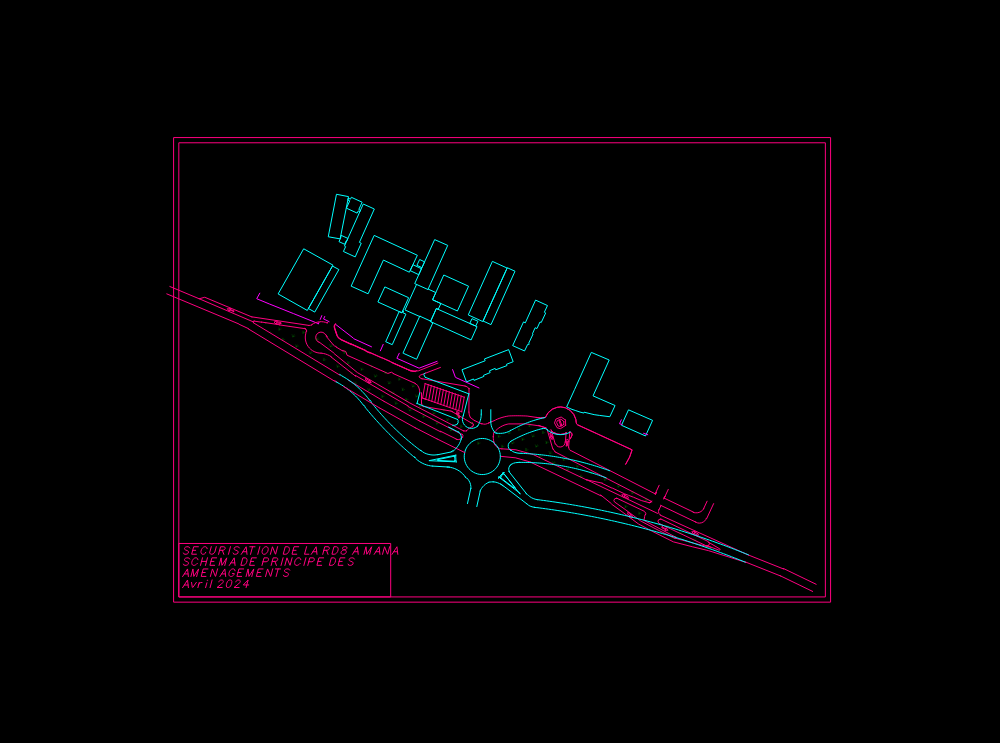

CAD plan of RD8 road infrastructure in Mana featuring a roundabout, road layout, and adjacent building footprints.

Topographic survey & road layout for the RD8 securitization project incl. utilities, buildings etc.

PREMIUM

File Details

File Type
DWG
Type
Full Project
Language
French
Materials
N/A
Units
Metric
Area
Over 5000 m² (53819.5 ft²)
Features
Parking, Garden / Park
Uploaded by
CAD Workshop
Category
Public Facilities, Roads, Bridges and Dams
Published
Apr 24, 2026
Price $7.95
or

or get unlimited access from $7/mo

Tags

civil engineering infrastructure Mana RD8 road layout topography
