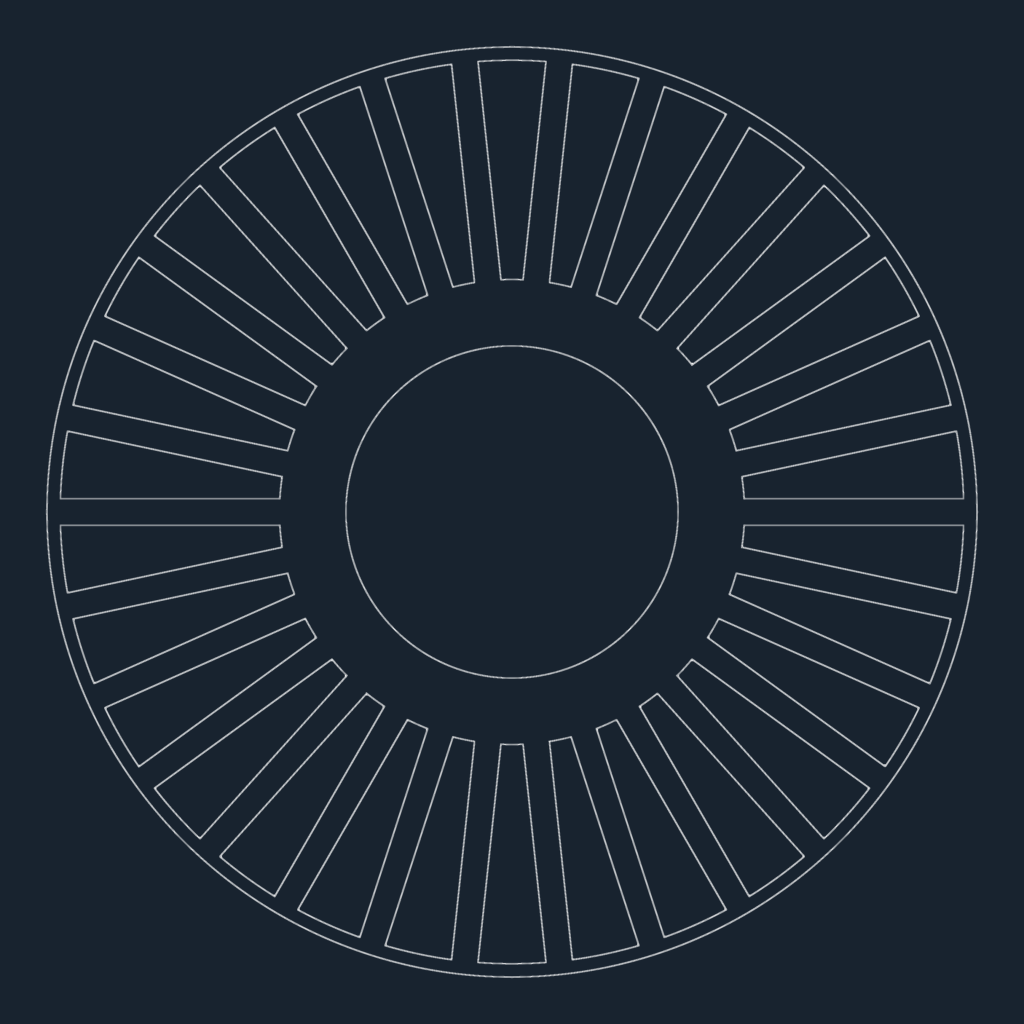

Standard rotary encoder disc with 30 slots. 70mm diameter, works for optical sensors or tachometer setups. I’ve used this in some robotics projects. Simple DWG block, just the geometry.
Rotary Encoder Disc DWG Block
Standard rotary encoder disc with 30 slots. 70mm diameter, works for optical sensors or tachometer setups. I’ve used this in some robotics projects. Simple DWG block, just the geometry.
