Satellite Tv 2D DWG Block for AutoCAD

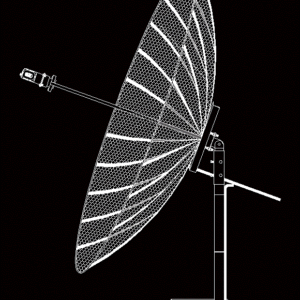

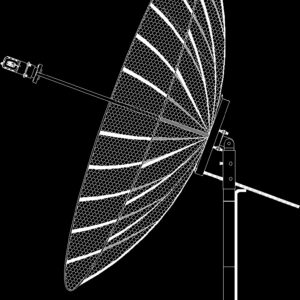

A C-band satellite dish; with petals in mesh; Orbitron brand type; with its own focus and pedestal

Drawing labels, details, and other text information extracted from the CAD file:

california, amplifier, phase locked lnb, low noise block downconverter, part no: input: ghz vdc: to output: mhz gain: db typ., made in u.s.a.

Raw text data extracted from CAD file:

California Amplifier DIGI-READY PHASE LOCKED LNB LOW NOISE BLOCK DOWNCONVERTER \W8.65079; PART No: 31846 NOISE:25 K \W7.88095; INPUT: 3.7-4.2 GHz VDC: +16 to + 24 \W8.66667; OUTPUT: 950-1450 MHz GAIN: 65 dB Typ. \W7.00000; S/No 833 0024872 MADE IN U.S.A. CAMARILLO, CA
