Section Facade Basement DWG Section for AutoCAD

Section Facade Basement DWG Section for AutoCAD

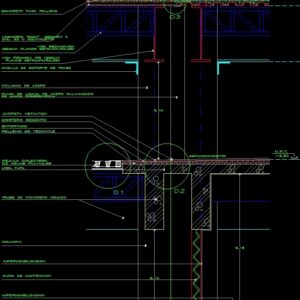

Section facade at parking basement – Columns concrete and losacero

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

level, n.p.t., parking lot, waterproofing, waterproofing, of contention, tank, concrete, foundation slab reinforcement flat polished finish, flat, flat column, sheet of galvanized steel in joint, steel column, lock bracket angle, n.p.t., parking lot, top, reinforced concrete, rainwater collection grid, primary beam ipr planes, warped, tezontle stuffing, cement mortar, asphalt folder, flashing, Stainless steel gauge facahada blade, polin zintro structural lime. reinforcement for facade of sheet, steel column, concrete block washing stamped with integral color red oxide, latex additive for thin-film adhesives, parking place, sideboard, n.p.t., mm., n.p.t., ceramic, pine wood base, commercial, secondary beam plans, compression mesh layer with mesh, concrete for filling, the section lime section. equivalent

Raw text data extracted from CAD file:

A nivel nivel \A1;2.10 \A1;3.19 \A1;2.10 -1.0 -1.0 N.P.T. -7.10 ESTACIONAMIENTO IMPERMEABILIZACION \A1;RELLENO \A1;COLUMNA IMPERMEABILIZACION \A1;MURO DE CONTENCION CISTERNA \A1;GUARNICION DE CONCRETO LOSA DE CIMENTACION DE CONCRETO ARMADO ACABADO PULIDO (VER PLANO ESTRUCTURAL) \A1;CONTRATRABE (VER PLANO ESTRUCTURAL) \A1;DADO DE COLUMNA (VER PLANO ESTRUCTURAL) PLACA DE LÁMINA DE ACERO GALVANIZADO EN JUNTA CONSTRUCTIVA COLUMNA DE ACERO ÁNGULO DE SOPORTE DE TRABE N.P.T. -3.30 D2 -1.0 ESTACIONAMIENTO \A1;LOSA TAPA \A1;TRABE DE CONCRETO ARMADO REJILLA COLECTORA DE AGUAS PLUVIALES D1 VIGA PRIMARIA IPR (SEGUN PLANOS ESTRUCTURALES) ENTORTADO RELLENO DE TEZONTLE MORTERO CEMENTO CARPETA ASFALTICA FLASHING LÁMINA DE FACAHADA DE ACERO INOXIDABLE CALIBRE 24 POLIN ZINTRO ESTRUCTURAL CAL. 12 254mm x 76.2mm. DE REFUERZO PARA FACHADA DE LÁMINA COLUMNA DE ACERO D11 BLOQUE DE CONCRETO LAVADO ESTAMPADO 1.20 X 1.20 m CON COLOR INTEGRAL ROJO ÓXIDO ADITIVO LATEX PARA ADHESIVOS DE CAPA DELGADA PLAZA PARA EXPOSICIONES APARADOR N.P.T. ±0.00 5' 5 \A1;VIDRIO DE 8 MM. N.P.T. +0.15 \A1;LADRILLO CERÁMICO 8X18X33 D3 ZÓCALO DE MADERA DE PINO LO0CAL COMERCIAL VIGA SECUNDARIA (SEGUN PLANOS ESTRUCTURALES) CAPA DE COMPRESION DE CONCRETO CON MALLA ELEC.66/66 CONCRETO PARA RELLENO LOSACERO "IMSA" SECCIÓN 4 CAL. 22 O EQUIVALENTE

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel, Wood
Measurement Units
Footprint Area
Building Features	Parking, Garden / Park
Tags	adobe, autocad, basement, bausystem, columns, concrete, construction system, covintec, DWG, earth lightened, erde beleuchtet, facade, losacero, parking, plywood, section, sperrholz, stahlrahmen, steel framing, système de construction, terre s
