Section Facade DWG Section for AutoCAD

Section Facade DWG Section for AutoCAD

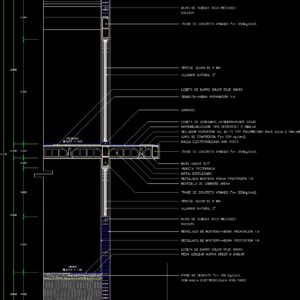

Constructive details of reinforced balcony with flagstone joist

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

N.p.t., Hydroform sealer no. Water-based polyurethane type similar, Cut by facade, Niv Average alignment level, N.p.t., bedroom, kitchen, N.p.t., Similar festerfelt waterproofing agent, natural terrain, Curfew, Mortar, Stone foundation, Fc, Poor concrete template, With welded mesh, Firm cement, Ratio repellency, Tag, Clay tile red color, Reinforced concrete block, Ratio repellency, Natural aluminum, Cement sandpit, Mortar, expanded metal, Prestressed joist, Water boot, welded Mesh, Compression layer, Crystal clear mm., Red brick wall, Reinforced concrete block, Similar festerfelt waterproofing agent, proportion, Clay tile red color, Sardinel, Water base similar, Hydroform sealer no. Polyurethane type, Based on proportion, Red brick wall, Mud wedge cover, Reinforced concrete block, Crystal clear mm., Natural aluminum, Anti-slip cereal tile

Raw text data extracted from CAD file:

a N.P.T. 00 00 2.100 2.990 6.432 0.832 0.832 0.200 0.250 1.000 1.100 0.250 2.300 0.060 0.890 0.060 2.100 2.990 6.432 SELLADOR HIDROFORM No. 40-11 TIPO POLIURETANO BASE AGUA O SIMILAR CORTE POR FACHADA NIV. COTA MEDIA ALINEAMIENTO 0.832 0.832 N.P.T. + 3.63 RECAMARA 0.200 0.250 1.000 1.100 COCINA N.P.T. + 1.08 0.250 2.300 IMPERMEABILIZANTE TIPO FESTERFELT O SIMILAR TERRENO NATURAL DALA DE DESPLANTE 0.20X0.20 SOBRE MORTERO PROPORCION 1:4 CIMIENTO DE PIEDRA BRAZA, ASENTADA f'c = 100 Kg/cm2 PLANTILLA DE CONCRETO POBRE CON MALLA ELECTROSOLDADA 6X6-10X10 FIRME DE CEMENTO f'c= 100 kg/cm2. REPELLADO DE MORTERO-ARENA PROPORCIÓN 1:6 PEGA AZULEJO MARCA CREST O SIMILAR LOSETA DE BARRO COLOR ROJO 60X60 TRABE DE CONCRETO ARMADO f'c= 250kg/cm2. REPELLADO DE MORTERO-ARENA PROPORCIÓN 1:6 ALUMINIO NATURAL 2" BOVEDILLA DE CEMENTO ARENA REPELLADO MORTERO ARENA PROPORCIÓN 1:6 METAL DESPLEGADO VIGUETA PRETENSADA BOTA AGUAS 3/4" MALLA ELECTROSOLDADA 6X6-10X10 CAPA DE COMPRESIÓN f'c= 200 kg/cm2. CRISTAL CLARO DE 6 MM. 6X12X24 MURO DE TABIQUE ROJO RECOCIDO TRABE DE CONCRETO ARMADO f'c= 250kg/cm2. 0.060 0.890 0.060 1 IMPERMEABILIZANTE TIPO FESTERFELT O SIMILAR CEMENTO-ARENA PROPORCIÓN 1:6 LOSETA DE BARRO COLOR ROJO 60X60 SARDINEL BASE AGUA O SIMILAR SELLADOR HIDROFORM No. 40-11 TIPO POLIURETANO ASENTADA SOBRE MORTERO-ARENA PROPORCIÓN 1:6 MURO DE TABIQUE ROJO RECOCIDO 6X12X24 CUBIERTA (BOVEDA) CUÑA DE BARRO TRABE DE CONCRETO ARMADO f'c= 250kg/cm2. CRISTAL CLARO DE 6 MM. ALUMINIO NATURAL 2" LOSETA DE CEREAMICA ANTIDERRAPANTE 30X30

Language	Spanish
Drawing Type	Section
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum, Concrete
