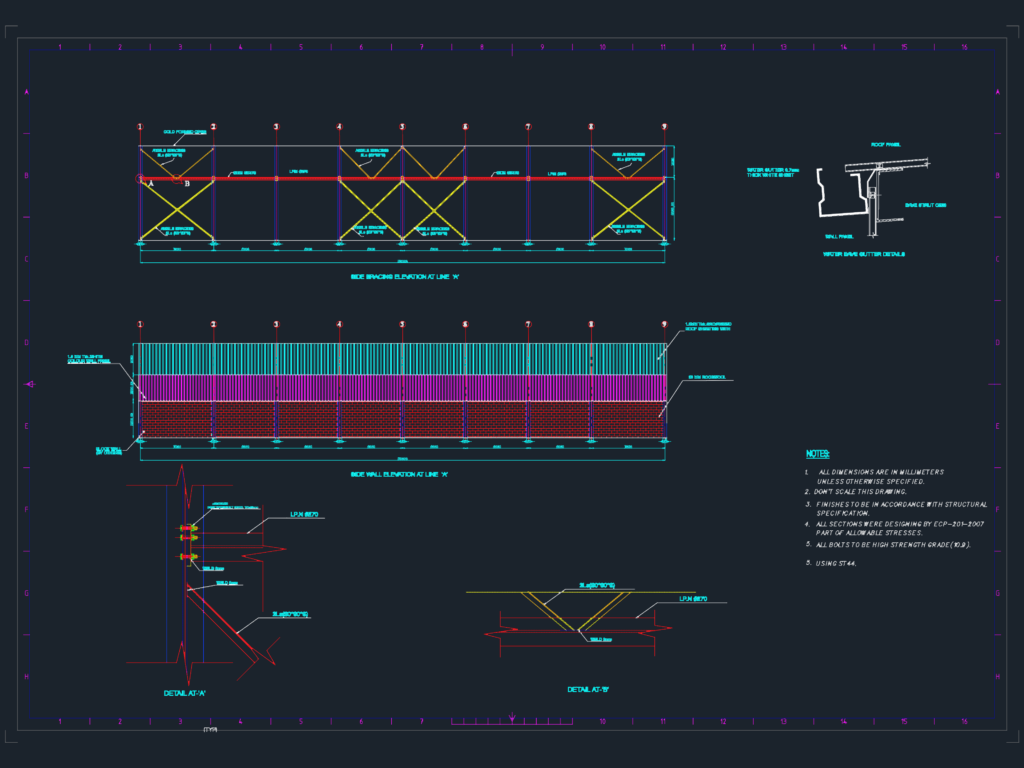

Side wall elevation and IPN 270 bracing details

Side wall elevation and bracing details including IPN 270 girts and angle bracing for a steel building.

Side wall elevation and angle bracing details for Line A. IPN 270 girts, 2Ls 80*80*8 bracing, and eave gutter sections included.

FREE

File Details

File Type
DWG
Type
Detail
Language
English
Materials
Steel
Units
Metric
Features
A/C
Uploaded by
Eng_Plans
Downloads
1 downloads
Category
Construction Details & Systems, Engineering & Technical
Published
Jul 21, 2026

Download faster, ad-free, with more daily files from $7/mo

Tags

angle bracing bracing details DWG eave gutter IPN 270 side wall elevation steel structure structural detail wall panel
