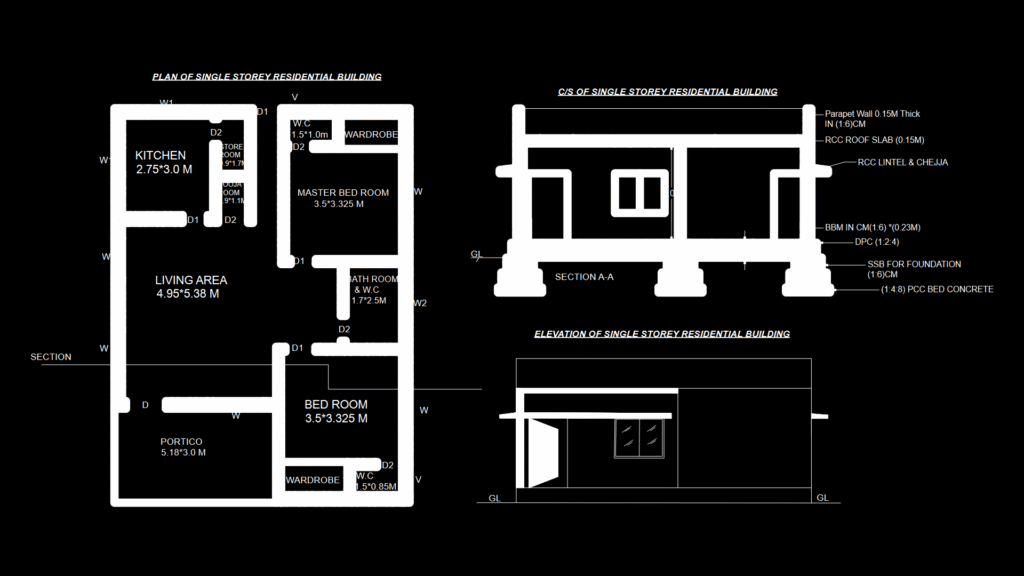

This comprehensive drawing set includes a floor plan, cross-section, and elevation for a single-storey residential building with concrete construction. The floor plan features a master bedroom (3.5×3.325m), secondary bedroom (3.5×3.325m), kitchen (2.75×3.0m), bathroom with WC (1.7×2.5m), living area (4.95×5.38m), and portico entrance (5.18×3.0m). The structure employs RCC (Reinforced Cement Concrete) construction with a 0.15m thick roof slab, RCC lintels and chejjas over openings, and a parapet wall. Foundation details show SSB (Stabilized Soil Block) foundation with PCC (Plain Cement Concrete) bed. The cross-section reveals construction specifics including DPC (Damp Proof Course) at 1:2:4 ratio and brick masonry walls of 23cm thickness. Multiple door and window openings (labeled D1, D2, W1, W2) are strategically placed throughout the floor plan. The drawing utilizes a clean black and white presentation style with room dimensions and construction specifications clearly labeled.
Single Storey Residential Building Plan with Structural Details
