Synergy Precast Facility Site Layout Overview

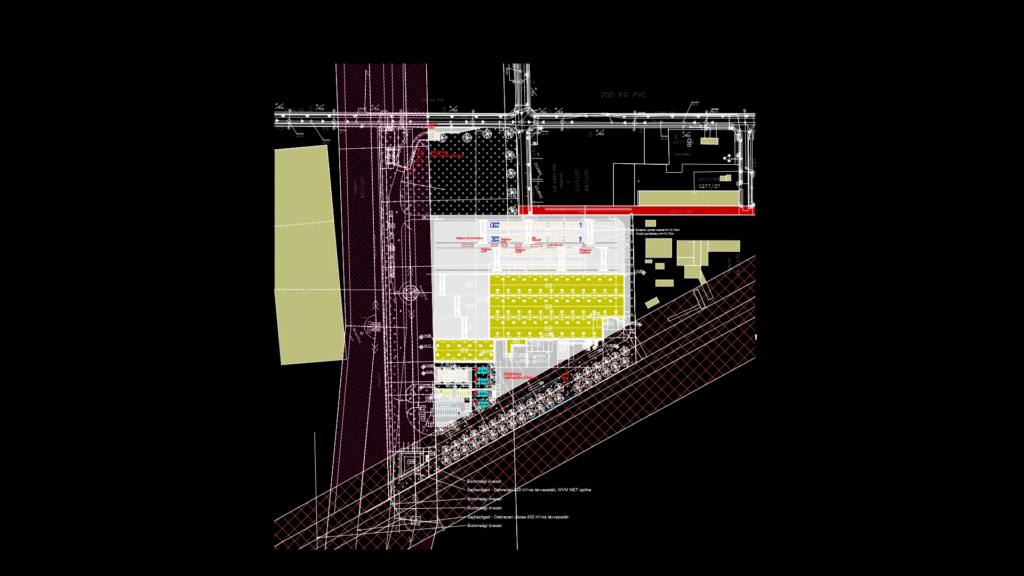

This comprehensive site plan depicts the layout of an industrial precast concrete manufacturing facility located in Polgár, Hungary (Hajdú út 40, HRSZ: 0277/82). This complex spans a total site area of 82,617 m² with multiple production buildings, storage areas, and support facilities.
Main Production Components:
– Three closed production lines (CL-01, CL-02, CL-03)
– Two open production lines (CL-D1, CL-D2)
– Three stock/storage areas (SL-01, SL-02, SL-03)
– Steel workshop building (SW-01)
Support Infrastructure:
– Office building and canteen
– Laboratory facilities
– Utility buildings including steam generators and transformer stations
– Water retention basins and water treatment facilities
– 62 parking spaces arranged along the eastern perimeter
The facility incorporates critical utility elements including high-voltage power lines (220kV and 400kV) with clearly marked safety zones, railway access, and industrial water management systems. The drawing indicates elevation points ranging from ±0.00 (+94.05 mBf) to +14.65, establishing the vertical positioning of structures across the site.
Particularly noteworthy is the integration of exterior portal cranes (h=10.70m) for material handling, essential for the precast concrete production workflow. The layout strategically organizes vehicular circulation with designated access points, truck scales, and wheel washing stations to maintain site cleanliness.
The drawing also includes environmental considerations with defined green areas, including specified tree species (Quercus robur and Carpinus betulus) and proper setbacks from utilities and property boundaries.
