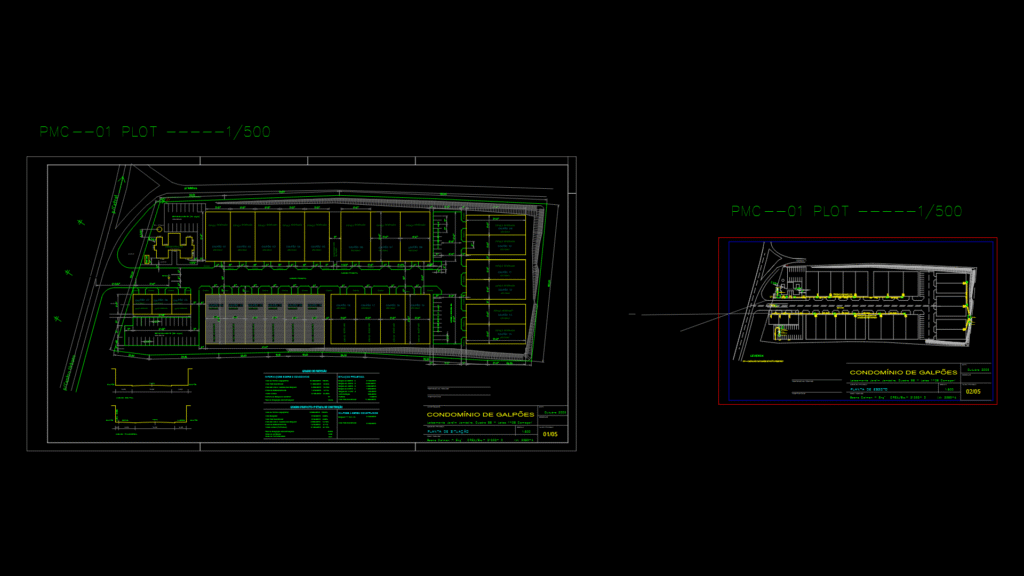

Site Plan for Industrial Warehouse Complex with Sewage System
Industrial warehouse complex site plan located in Loteamento Jardim Jambeiro, Camaçari, featuring 27 galpões (warehouses) with varying areas between 144m² and 540m². The layout includes dedicated administrative area, portaria (gatehouse), and multiple parking areas accommodating 70+ vehicles.
Infrastructure Features:
– Complete sewage system with 100mm and 150mm pipes
– Multiple sewage passage boxes (caixas de passagem)
– Anaerobic filter systems designed for 150 people
– Fossa and sumidouro (septic tank and drainage field)
Site Organization
The complex is organized along central and transversal avenues with dedicated green areas (áreas verdes) throughout. Topographic elevations range from 98.4m to 108.5m. The master plan incorporates three cross-sections (T01-T03) and three longitudinal sections (L01-L03) for proper grading and drainage.
The drawing includes both situational context (showing relationship to Monte Gordo road) and detailed sewage system routing, establishing proper waste management for the industrial complex at 1:500 scale.
| Language | Portuguese |
| Drawing Type | Plan |
| Category | Industrial |
| Additional Screenshots | |
| File Type | dwg |
| Materials | |
| Measurement Units | Metric |
| Footprint Area | Over 5000 m² (53819.5 ft²) |
| Building Features | Parking, Garden / Park |
| Tags | Camaçari, galpões, industrial site plan, septic design, sewage system, topographic plan, warehouse complex |
