Slide Pool DWG Full Project for AutoCAD

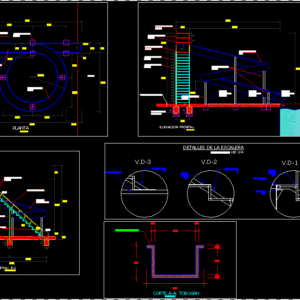

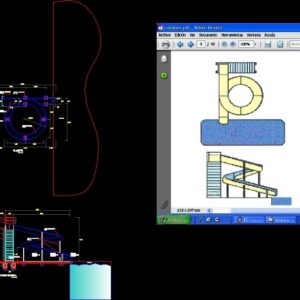

project that includes FLOORPLANS, ELEVATION DETAILS OF A SLIDE WITH FIBERGLASS LADDER STRUCTURE AND METAL.

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

concrete ‘c, front elevation, scale, concrete data of, corrugated iron, tube f. black mm, scale, lateral elevation:, corrugated iron, fiberglass mm., slide court, scale, details of the staircase, fluted iron, platinum, tube of, angle of, angle, tube f. black mm, concrete slab, fiberglass mm., tube f. black mm, fiberglass mm., tube f. black mm, scale, plant, tube f. black mm, pool, tube f. black mm, fiberglass mm., pool, tube f. black mm, tube f. black mm, corrugated iron, fiberglass mm., angle, angle of

Raw text data extracted from CAD file:

\A1;1.45 \A1;3.34 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.180 \A1;.20 \A1;5.81 \A1;4.54 \A1;3.29 \A1;.52 \A1;4.47 \A1;.40 \A1;2.37 \A1;.20 \A1;.60 \A1;.30 \A1;.40 \A1;.30 \A1;.40 \A1;.30 \A1;.40 \A1;.30 \A1;.40 \A1;.525 \A1;.040 \A1;.040 \A1;.040 \A1;.734 \A1;.420 \A1;.040 \A1;.340 \A1;2.09 \A1;.85 \A1;.88 \A1;6.69 \A1;.40 \A1;1.20 \A1;1.20 \A1;3.34 \A1;.300 \A1;.300 \A1;.300 \A1;.300 \A1;.85 \A1;.60 \A1;.60 \A1;R2.20 \A1;.52 \A1;2.37 \A1;2.09 \A1;.90 \A1;R.30 \A1;.82 \A1;2.94 \A1;2.16 \A1;4.26 \A1;6.95 \A1;.60 \A1;3.80 \A1;.69 \A1;.70 \A1;4.36 \A1;1.00 \A1;.25 \A1;3.60 \A1;2.90 \A1;1.90 \A1;1.90 \A1;1.90 \A1;1.55 \A1;4.54 \A1;.23 \A1;.52 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 CONCRETO f ‘c = 140 Kg/cm2 ELEVACION FRONTAL ESCALA 1/50 DADO DE CONCRETO DE 30X40cm DADO DE CONCRETO DE 30X40cm DADO DE CONCRETO DE 30X40cm PLANCHA ESTRIADA DE 1/8″ 5 5 5 5 5 TUBO F. NEGRO 3″x 2.5 mm 5 5 ESCALA 1/50 ELEVACION LATERAL: E-1 5 5 5 5 5 5 5 5 5 PLANCHA ESTRIADA DE 1/8″ 5 FIBRA DE VIDRIO 4 mm. CORTE A-A: TOBOGAN ESCALA 1/10 5 5 5 5 5 5 5 5 5 5 5 5 DETALLES DE LA ESCALERA \H0.5x;\l \H1.25x; ESC 1/10 Plancha Estriada 1/8″ Plancha Estriada 1/8″ Platina de 1/4″ Tubo de d 2″ V.D-2 V.D-1 Piso+Contrapiso V.D-3 V.D-3 V.D-2 V.D-1 5 5 5 Angulo de 2″ x 2″ Angulo de 2″ x 2″ Angulo de 2″ x 2″ ANGULO 2″ x 2″ x 1/8″ 5 5 5 5 5 TUBO F. NEGRO 3″x 2.5 mm TUBO F. NEGRO 2″x 2.5 mm TUBO F. NEGRO 1″x 2.5 mm TUBO F. NEGRO 3″x 2.5 mm LOSA DE CONCRETO e= 0.210cm FIBRA DE VIDRIO 4 mm. TUBO F. NEGRO 1″x 2.5 mm TUBO F. NEGRO 1″x 2.5 mm TUBO F. NEGRO 1″x 2.5 mm 5 FIBRA DE VIDRIO 4 mm. TUBO F. NEGRO 3″x 2.5 mm 5 5 A E-1 A ESCALA 1/50 PLANTA TUBO F. NEGRO 1″x 2.5 mm TUBO F. NEGRO 1″x 2.5 mm TUBO F. NEGRO 3″x 2.5 mm PISCINA TUBO F. NEGRO 1″x 2.5 mm (BARANDA) FIBRA DE VIDRIO 4 mm. 5 PISCINA TUBO F. NEGRO 1″x 2.5 mm 5 5 TUBO F. NEGRO 3″x 2.5 mm PLANCHA ESTRIADA DE 1/8″ 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 5 FIBRA DE VIDRIO 4 mm. ANGULO 2″ x 2″ x 1/8″ 5 5 5 Angulo de 1″ x 1″ \A1;.420 \A1;.420
