Solid Plane Slab DWG Block for AutoCAD

Solid Plane Slab DWG Block for AutoCAD

Contact with wall -Inclined counter floor

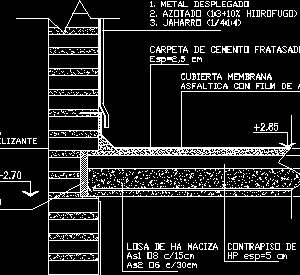

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

silicone waterproofing paint, dilatation, of solid, subfloor slope cm, Asphalt membrane cover with aluminum film, cement folder fratasado cm, deployed metal whipped jaharro

Raw text data extracted from CAD file:

±0.00 \A1;0.0250 \A1;0.0500 \A1;0.1000 PINTURA SILICONADA IMPERMEABILIZANTE DILATACION +2.70 5 +2.85 \A1;LOSA DE H°A° MACIZA As1 O8 c/15cm As2 O6 c/30cm CONTRAPISO DE PENDIENTE H°P° esp=5 cm 5 5 CUBIERTA MEMBRANA ASFALTICA CON FILM DE ALUMINIO CARPETA DE CEMENTO FRATASADO Esp=2,5 cm 1. METAL DESPLEGADO 2. AZOTADO (1:3+10% HIDROFUGO) 3. JAHARRO (1/4:1:4)

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Aluminum
Measurement Units
Footprint Area
Building Features
Tags	autocad, block, construction details section, contact, counter, cut construction details, DWG, floor, inclined, plane, slab, solid, wall
