Sound Proof Door DWG Section for AutoCAD

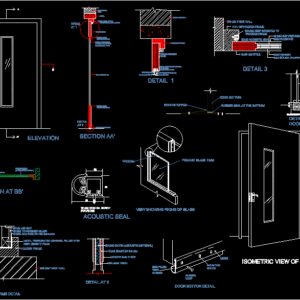

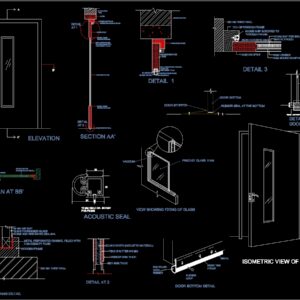

Sound Proof Door with details. sections and elevations. Joinery details are also provided. Isometric views and sectional details are also provided.

Drawing labels, details, and other text information extracted from the CAD file:

Translating…

Raw text data extracted from CAD file:

2100 END FILLED WITH RUBBER DOOR BOTTOM DETAIL MOUNTING HOLES RUBBER LOOP METAL ISOMETRIC VIEW OF DOOR LEFT JAMB DETAIL 25 MM AIR GAP 12 MM TOUGHENED GLASS NOISE AND FIRE RATED SEALING METAL PERFORATED CHANNEL FILLED WITH HIGH DENSITY FOAM WOODEN FRAME TEAK SHUTTER 6-8 MM DETAIL AT 2 PLAN AT BB’ 25 MM AIR GAP 12 MM TOUGHENED GLASS METAL PERFORATED CHANNEL FILLED WITH HIGH DENSITY FOAM WOODEN SHUTTER 116X50 25 MM AIR GAP 12 MM GLASS VIEW SHOWING FIXING OF GLASS ELEVATION 2100 A’ A B B’ PRECAST GLASS 8 MM SECTION AA’ STRUCTURAL WALL LINTEL 110X85 DOOR FRAME AUTOMATIC DOOR CLOSURE 116X 50 STYLE 10 MM X 10 MM WOODEN BEADING 10 MM X 10 MM WOODEN BEADING METAL PERFORATED CHANNEL FILLED WITH HIGH DENSITY FOAM MORTICE DOOR SEAL 4MM THICK GLASS DETAIL AT 1 DETAIL 1 VENEER 2MM THICK SOUND SYNTH (ACOUSTIC MATERIAL) NBR 4MM THICK DETAIL AT 2 WALL FRAME SHUTTER BEADING GLASS SOUND SYNTH (ACOUSTIC MATERIAL) 16 20 30 ACOUSTIC SEAL 10 MM HEAD DIA SCREW FOR FIXING 20×30 ACOUSTIC SEAL 18 MM GAP FOR INSULATION MATERIAL 2MM VENEER 8MM PLYWOOD DETAIL 3 110 x 85 WOODEN FRAME 116×50 MM STILE 4MM SOUND DAMPING FOAM SOUND SNIP SCREWED TO WOODEN FRAME 28×30 MM MORTIS DOOR SEAL 15 MM GROOVE 9 GROOVE FOR UP AND DOWN MOVEMENT OF SEAL 9 8 LEVER FOR UP AND DOWN MOVEMENT OF SEAL 230 MM THICK WALL 230 MM THICK WALL 230 MM THICK WALL DETAIL 3 DETAIL OF MORTICE DOOR SEAL 110X85 DOOR FRAME
