Steel Structural Badge 3 Thicknes For Anchorage Of Steel Beams To Concrete Column DWG Block for AutoCAD

Steel Structural Badge 3 Thicknes For Anchorage Of Steel Beams To Concrete Column DWG Block for AutoCAD

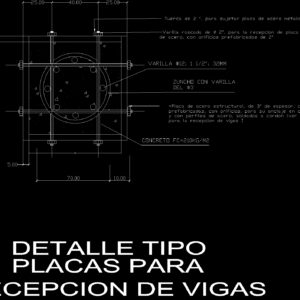

Steel structural badge 3

Drawing labels, details, and other text information extracted from the CAD file (Translated from Spanish):

Beam reception, Of steel of cedula with for its anchorage in column with profiles of soldiers cordon for the reception of beams, Plates for, Type detail, concrete, Threaded for the reception of plate of prefabricated holes of, Nut for securing metal steel plate, Zuncho with rod of, dipstick

Raw text data extracted from CAD file:

\A1;10.00 \A1;70.00 \A1;25.00 \A1;40.00 \A1;25.00 \A1;5.00 \A1;5.00 \A1;80.01 RECEPCION DE VIGAS 5 -Placa de acero estructural, de 3" de espesor, cedula 40 prefabricadas, con orificios, para su anclaje en columna y con perfiles de acero, soldados a cordon (ver especificacion) para la recepcion de vigas I PLACAS PARA DETALLE TIPO CONCRETO FC=210KG/M2 5 -1.0 5 5 -Varilla roscada de d 2", para la recepcion de placa de acero, con orificios prefabricados de 2" - Tuerca de 2 ", para sujetar placa de acero metalica ZUNCHO CON VARILLA DEL #3 VARILLA #12; 1 1/2"; 32MM -1.0 -1.0 -1.0

Language	Spanish
Drawing Type	Block
Category	Construction Details & Systems
Additional Screenshots
File Type	dwg
Materials	Concrete, Steel
Measurement Units
Footprint Area
Building Features
Tags	anchorage, autocad, badge, beams, block, column, concrete, DWG, stahlrahmen, stahlträger, steel, steel beam, steel frame, structural, structure en acier
