Structural drawings for R+2 house

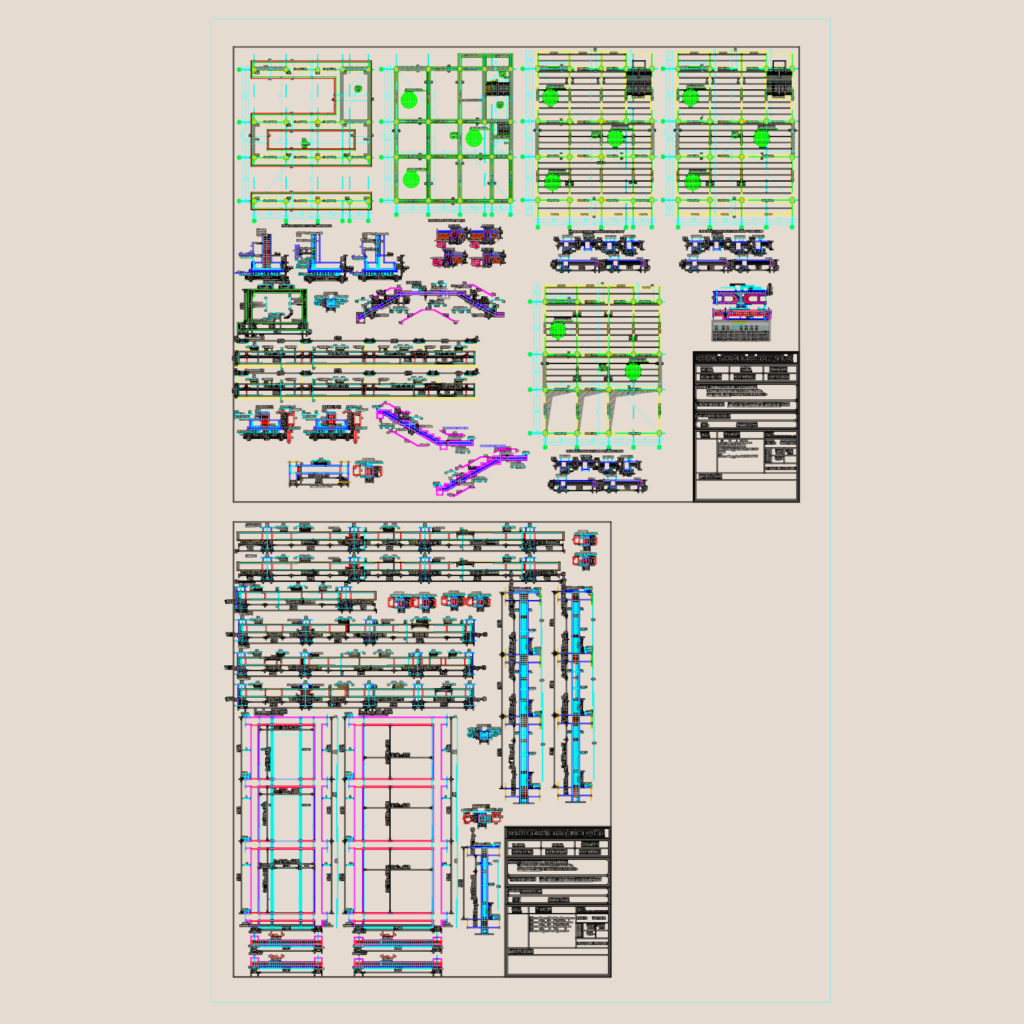

CAD layout showing structural floor framing, foundation plans, and reinforced concrete details for a residential home.

Structural set for an R+2 residence. foundation plans, floor slabs, rebar details for beams and columns, plus stairs. For an execution phase project in Algeria

PREMIUM

File Details

File Type
DWG
Type
Full Project
Language
French
Materials
Concrete, Steel
Units
Metric
Area
250 – 499 m² (2691.0 – 5371.2 ft²)
Features
Garage
Uploaded by
Reem
Category
Misc Plans & Projects
Published
Aug 30, 2026
Price $2.90
or

or get unlimited access from $7/mo

Tags

Algeria residence beam details civil engineering coffrage COLUMN REINFORCEMENT construction drawing ferraillage foundation layout R+2 house staircase-section structural plans
