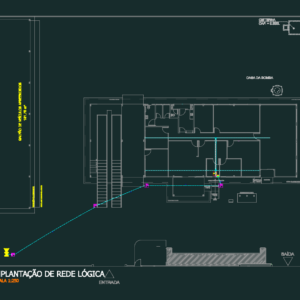

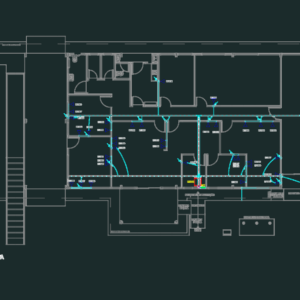

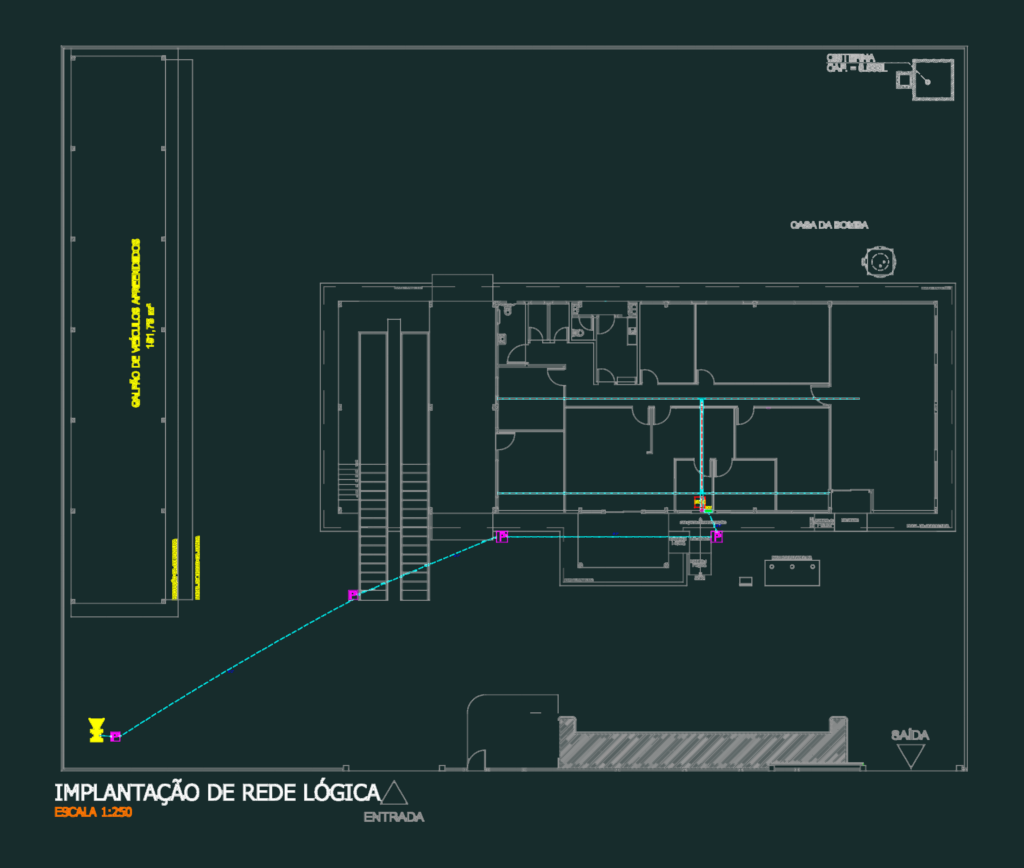

Logic network layout for a government headquarters expanson, including site plan and 1:100 floor plans. Structured cabling details feature Cat 5e UTP, RJ45 jacks and #18 ga. perforated cable trays. Includes 50x50x50 cm masonry junction boxes and equipment rack specs per NBR 14.565.
Structured cabling and data network layout for office building
